HDP-9000EX High Definition
Telephoto conversion Lens 1.8x
Especially developed for using with a large aperture taking lens of High Definition camera, extending the focal length 1.8 times. Brings a distant subject
up very close in maintaining the original superb image quality.
HDP-9000EX lens is originally designed in high resolution formula getting an amazing 280 L/mm resolution power at center. It perfectly suits to a high definition camera.
The lens comes with an originally made Lens Shade which shuts a flare and
ghost image effect considerably and the lens case. These are packed with
the lens in the carton together.
HDP-9000EX extends the focal length of Canon GL-1, GL-2, XM-1, XM-2 zoom
lens to 1400mm Super telephoto*.
With the HDP-9000EX lens attached, there will be no influence on F number
of the master lens.
Model RA7258 Raynox adapter ring(sold separately) for 58mm filter size
is required for use with the HDP-9000EX +Canon GL-1, GL-2, XM-1, XM-2 cameras.
RA7258 adapter ring is Not included.
*35mm film equivalent.
Specifications |
 |
|
|
Click for comparison image
|
 |
Click for comparison image
|

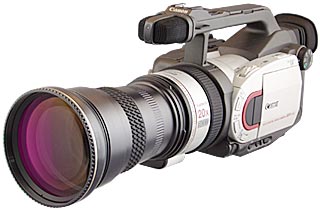

DCR-2025PRO 2.2x
High Quality Telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of Canon GL-1, GL-2, XM-1, XM-2
zoom lenses to 1700mm Super telephoto ! (35mm film equivalent) It's a completely
new high definition lens made of the high index optical lens with a 2-group/4-element
formula. 260 lines/mm resolution power at center (MTF30%)
Model RA6258 adapter ring is required for use with the DCR-2025PRO.
Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 5.5m
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 85mm/275g
DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade, Lens caps, Lens pouch, Instructions.
Specifications
Raynox lens shade: model LS-082
Weight: 69g.(2.4oz) |

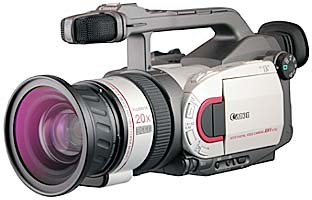

HD-7000PRO
58mm High Quality Wideangle Lens, 0.7x
Specifications
The model HD-7000PRO high definition Wideangle conversion lens is made
of the high index optical glass with new concept of lens designing
using three-group/three-element lens formula. This new concept in designing
the lens made it possible to achieve an amazing high definition wideangle
lens of 540 lines/mm resolution power at center(MTF 30%).
Its compatible with whole zoom area and stays in focus.
There will be no reduction of light value when this conversion lens is
attached on the camera's lens.
Magnification: Nominal 0.7x
Actual 0.7x/Diagonal, 0.7x/Horizontal
Lens construction: 3G/3E Optical
coated glass elements
Front filter size: 82mm
Mounting threads:
58mm
Size/Weight: 86 x 37mm/314g
|
|
|
|
|
|
HDP-5072EX High Definition
Semi-Fisheye conversion Lens 0.5x
The model HDP-5072EX is a 0.5x semi-fish eye conversion lens particularly designed for use with the High Definition large aperture camera lens, and it has a resolution power of 630 lines/mm at
center (MTF30%). With the HDP-5072EX lens mounted on a High Definition camera's lens, it broadens 100% more the field of view than the original widest angle of view. In shooting a subject of short distance with HDP-5072EX lens on, it creates an interesting image of semi-fisheye effect, taking an advantage of the -31% distortion nature, but it takes a panoramic picture of 0.5x wide angle coverage without bothering the distortion image, when taken a distant subject.
Model RA7258 Raynox adapter ring(sold separately) for 58mm filter size
is required for use with the HDP-5072EX + Canon GL-1, GL-2, XM-1, XM-2
Construction: Sturdy and solid metal body
Magnification:
Nominal 0.5x
Actual 0.44x/Diagonal, 0.5x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 7x
Front filter size: None
Mounting threads: 72mm
Size/Weight: 42 x 125mm/640g(22.6oz)
Accessories included: Lens caps, Lens case.
Specifications |
|
|
|
Click for comparison image
|
|
Click for comparison image
|
DCR-1540PRO 1.54x
Pro-Telephoto Conversion Lens
DCR-1540PRO lens extends the focal length of Canon GL-1, GL-2, XM-1,XM-2
zoom lenses to 1200mm telephoto lens ! (35mm film equivalent) It's a completely
new high definition lens made of the high index optical lens with a 2-group/4-element
formula. This new concept in designing the lens made it possible to achieve an amazing high definition telephoto lens of the 340 lines/mm resolution power at center (MTF30%), low dispersion and the increased light transmittance at fringe area.
Magnification: Nominal 1.54x Actual 1.54x / Diagonal, 1.54x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
RA5258A adapter ring is Not Included.
Specifications
|

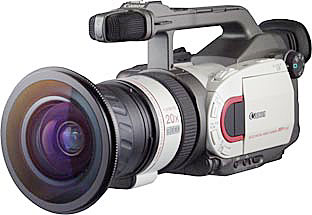

DCR-FE180PRO
Fisheye Ultra-Wideangle Lens Attachment, 0.24x
Specifications
Front filter size: None
Compatible with Canon GL-1, GL-2, XM-1,XM-2.
RA6258,RA6252 adapter rings are included with the DCR-FE180PRO.
Nominal 0.24x, 0.22x/Diagonal, 0.3x/Horizontal(Average magnifications)
(Up to 6x zoom capability)
Size/Weight: 100mm x 69mm 685gr
**The picture becomes soft focus beyond 6x zoom telephoto position while
Fish-Eye lens is on the camera. |
|
|
 (700KB)
 (3800KB) |
|
|
|
Click for comparison image
|
|
Click for comparison image
|

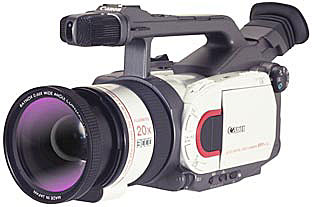

HD-6600PRO58
58mm High Quality Wideangle Lens, 0.66x
In designing this lens we successfully controlled the color aberration
and distortion of picture image at the least, and could reach to the high
resolution power of *350-line/mm at center. Mounting threads is 58mm.
Compatible with Canon GL-1/2,XM-1/2
Front filter size is 72mm. Nominal 0.66x(Actual
0.66x/diagonal, 0.66x/center).
Size/Weight: 75mm x 36mm 178g
* MTF 30%. Equivalent to 1890-line/TV(1/4" CCD),2520-line/TV(1/3"
CCD).
**The picture becomes soft focus beyond 6x zoom telephoto position while wideangle lens is on the camera.
|
DCR-5000 Wideangle Lens, 0.5x
Production discontinued - July 2008
DCR-5000 lens is equipped as same lens as XL-5000PRO with 52mm mounting
threads.
Lens Specification Page
Mounting size: 52mm
Adapters are available for following filter sizes.
RA5258A adapter ring is Not Included.
DCR-5000 is designed to focus when the zoom lens is set in maximum wideangle
position. |
|
|
|
Click for comparison image
|
|
Click for comparison image
|
DCR-720 Wideangle Lens, 0.72x
Lens Specification Page
Mounting size: 52mm
RA5258A adapter ring is Not Included.
|
MX-3000PRO
Semi-Fisheye Ultra-Wideangle Lens Attachment, 0.3x
MX-3000PRO lens is equipped as same lens as XL-3000PRO with a durable metal
body, and attaches 58mm filter size Camcorders directly without using any
adapter ring.
The lens provide an extra wideangle view.
Front filter size: 87mm
Compatible with Canon GL-1, GL-2, XM-1,XM-2.
Lens Specification Page
Nominal 0.3x(Actual 0.35x/horizontal, 0.25x/diagonal).
(Limited zoom capability)
Size/Weight: 95mm x 24mm 195gr
For 27-37mm filter size click
MX-3000PRO is designed to focus when the zoom lens is set in maximum wideangle
position. |
|
|
|
Click for comparison image
 |
|
Click for comparison image
|

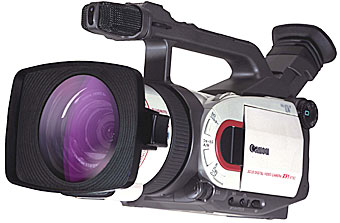

XL-7000PRO Wideangle Lens Attachment, 0.7x
XL-7000PRO lens is equipped with a Lens Shade and universal sized Snap-on
mount, and attaches instantly to your Camcorders lens to provide an extra
wideangle view.
Universal mount is suitable for 52-67mm filter
sizes.
Compatible with Canon GL-1, GL-2, XM-1, XM-2.
Nominal 0.7x(Actual 0.7x/horizontal, 0.68x/diagonal).
(Limited zoom capability)
Size/Weight: 135mm x 24mm 93gr
For 27-37mm filter size click
XL-7000PRO is designed to focus when the zoom lens is set in maximum wideangle
position. |

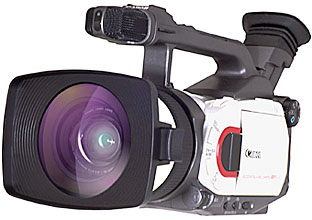

XL-5000PRO Super Wideangle Lens Attachment,
0.5x
XL-5000PRO lens is equipped with a Lens Shade and universal sized Snap-on
mount, and attaches instantly to your Camcorders lens to provide an extra
wideangle view.
Universal mount is suitable for 52-67mm filter
sizes.
Compatible with Canon GL-1, GL-2, XM-1, XM-2.
Nominal 0.5x(Actual 0.5x/horizontal, 0.44x/diagonal).
(Limited zoom capability)
Size/Weight: 135mm x 24mm 140gr
For 27-37mm filter size click
XL-5000PRO is designed to focus when the zoom lens is set in maximum wideangle
position. |
|
|
|
|
|
|

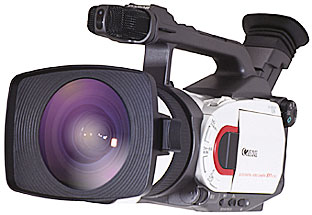

XL-3000PRO Semi-Fisheye Ultra-Wideangle Lens
Attachment, 0.3x
XL-3000PRO lens is equipped with a Lens Shade and universal sized Snap-on
mount, and attaches instantly to your Camcorders lens to provide an extra
wideangle view.
Universal mount is suitable for 52-67mm filter
sizes.
Compatible with Canon GL-1, GL-2, XM-1, XM-2.
Nominal 0.3x(Actual 0.35x/horizontal, 0.25x/diagonal).
(Limited zoom capability)
Size/Weight: 135mm x 24mm 175gr
For 27-37mm filter size click
XL-3000PRO is designed to focus when the zoom lens is set in maximum wideangle
position. |

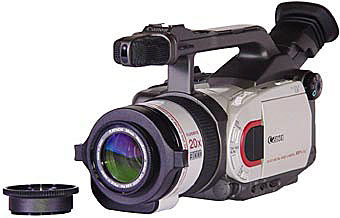

CM-2000 Macro/Close-Up 2-Lens Set
This Macro lens was originally developed
for use with 35mm SLR cameras, and they are
now available for digital camcorders to explorer
a world you never knew existed. The lens
set includes a snap-on universal mount suitable
for 52mm to 67mm size.
1.5x/Nominal Macro lens & 2.5x/Nominal
Macro lens.( Obtains the maximum macro
magnification
power when set at the most telephoto
position
of zoom lens.
Compatible with Canon GL-1, GL-2, XM-1, XM-2.
(480KB)
(3400KB)
(600KB)
(3600KB) |
|
|
|
|
|
 |
CM-3500 Micro/Close-Up 3-Lens Set
This Micro lens was originally developed
for use with 35mm SLR cameras, and the lens
is now available for digital camcorders to
explorer a world you never knew existed.
The lens set includes a snap-on universal
mount suitable for 52mm to 67mm size.
6x/Nominal Macro lens, 12x/Nominal Macro
lens & 24x/Nominal Macro lens.
( Obtains the maximum macro magnification
power when set at the most telephoto position
of zoom lens.
Compatible with Canon GL-1, GL-2, XM-1, XM-2. |
RA5258A Adapter ring
Especially designed to mount Raynox DCR-1540PRO, DCR-5000 and DCR-720 onto
58mm filter thread DVCAMs.
Go to other adapters.
|
|
|
|
|
|
●The cosmetic designs may change without prior notice.
●Remote control function and internal video light/Flash may not work properly with conversion lens attached.
●Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
●All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
●The lens is neither made for dust-free nor moisture/water-proof.
