Click camera for actual comparison images.

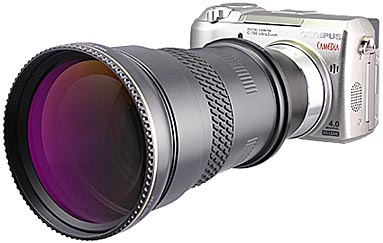

DCR-2025PRO 2.2x High Definition
Super Telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of OLYMPUS C-740UZ/C-745UZ/C-750UZ/C-755UZ/C-760UZ/C-765UZ/C-770UZ camera zoom lens to over 830mm Super telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.
260 lines/mm resolution power at center (MTF30%)

Model RT5245C7 Lens Holder Tube and RA6252 adapter ring are required for use with the DCR-2025PRO.

Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 8m/6.5m in macro mode.
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 85mm/275g.(9.7oz)
RT5245C7 lens holder is Not Included.
DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.
Specifications



Click camera for actual comparison images.
DCR-730 Wideangle lens 0.7x
DCR-730 lens broadens angle of view 37% more than original camera lens. The lens is made of high index optical glass elements which obtain the maximum resolution power of 375 lines/mm at center (MTF30%),
There will be no reduction of light value when this conversion lens is attached on the camera's lens.

Magnification: Nominal 0.7x Actual 0.71x/Diagonal, 0.75x/Horizontal
Lens construction: 2G/2E Optical coated glass elements
Mounting threads: 52mm
Size/Weight:: 66 x 29mm/130g

RT5245C7 lens holder is Not Included.
Specifications



Click camera for actual comparison images.




Click camera for actual comparison images.

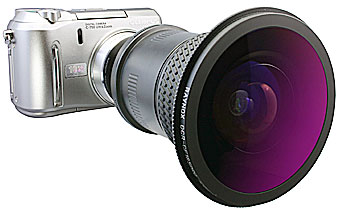

DCR-CF187PRO High Definition 185º Circular Fish-Eye Conversion Lens
Upon mounting on the zoom lens, The DCR-CF187PRO opens the field of view to the ultra wide angle, the diagonal fisheye angle and to the circular fisheye images. It's a completely new high definition lens made of the high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.

Model RT5245C7 Lens Holder Tube and RA6252 adapter ring are required for use with the DCR-CF187PRO.
Magnification: Nominal 185-degree, Actual 185-degree/Diagonal, 185-degree/Horizontal
Lens construction: 4G/6E, made of optical glass lenses, all surfaces fully coated.
Mounting threads: 62mm
Size / Weight: 96 x 98 / 560g(24oz)


RA6258, RA6255, RA6252 and RA6243 adapter rings are Included.

RT5245C7 lens holder is Not Included.
Specifications

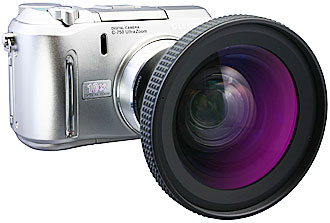

MDR-079PRO 0.79x
High Definition Wideangle Conversion Lens

MDR-079PRO 0.79x high definition lens is especially designed for getting low distortion(-1.9%) and high resolution(330 lines/mm resolution power at center (MTF30%)) performance. The lens converts them into the superb 30mm(35mm film equivalent) wide angle coverage cameras.

Model RT5245C7 Lens Holder Tube and RA4952 adapter ring are required for use with the MDR-079PRO.
Magnification: Nominal 0.79x Actual 0.79x / Diagonal, 0.79x / Horizontal
Lens construction: 3G/3E Optical coated glass elements
Mounting threads: 49mm
Front filter size: 82mm
Size/Weight: 86 x 29mm/195g.(6.8oz)
RA4952 adapter ring is Included.
RT5245C7 lens holder is Not Included.

Production Discontinued.
Available quantity may be limited. (Sep. 2007)



Click camera for actual comparison images.



Click camera for actual comparison images.

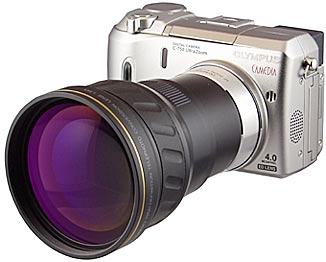

DCR-1542PRO 1.54x
Telephoto Conversion Lens

DCR-1542PRO lens extends the focal length of OLYMPUS C-740UZ/C-745UZ/C-750UZ/C-755UZ/C-760UZ/C-765UZ/C-770UZ camera lens to 585mm telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.
340 lines/mm resolution power at center (MTF30%)

Magnification: Nominal 1.54x Actual 1.54x / Diagonal, 1.54x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
RT5245C7 lens holder is Not Included.
Specifications

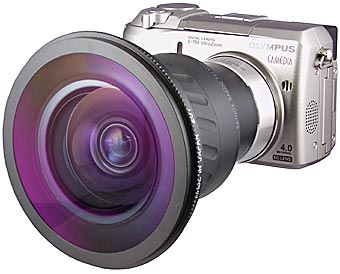

DCR-FE181PRO Pro Fish-Eye(Full Frame) Lens
DCR-FE181PRO lens captures an amazing ultra-wideangle view of 180 degrees on diagonal line. It stays in focus during the whole zooming when attached to the zoom lens of less than 4-time variation. It's a completely new high definition lens made of the high index optical lens with a 4-group/5-element formula.

Magnification: Nominal 0.24x Actual 180-degree/Diagonal, 0.24x/Horizontal
Lens construction: 4G/5E Optical coated glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g

Specifications
RA6258, RA6255, RA6252 and RA6243 adapter rings are Included.

RT5245C7 lens holder is Not Included.
Video Clip
WMV VIDEO FILE(WMV 700KB)(700KB)
MOV VIDEO FILE(MOV 3800KB)(3800KB)


Click camera for actual comparison images.


DCR-6600PRO Pro-Wideangle lens 0.66x
The lens creates super wide angle view of f=25mm (35mm film equiv.), compatible up to 5x zooming position. DCR-6600Pro lens controls the image distortion percentage at the least, less than -1.3%.

Magnification: Nominal 0.66x Actual 0.66x/Diagonal, 0.66x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 72mm
Size/Weight:: 77 x 40mm/178g

RT5245C7 adapter ring is Not Included.
Specifications
DCR-720 Wideangle lens 0.72x
Magnification: Nominal 0.72x Actual 0.72x/Diagonal, 0.77x/Horizontal
Lens construction: 2G/2E Optical coated glass elements
Mounting threads: 52mm
Size/Weight:: 80x38mm/135g


RT5245C7 lens holder is Not Included.
Production Discontinued.
Available quantity may be limited. (March 2005)



Click camera for actual comparison images.


Click camera for actual comparison images.
DCR-5000 Super Wideangle lens 0.5x
Production discontinued - July 2008
The lens creates 0.5x Super wide angle view.
(f=19mm-35mm film equiv.) Do not set in "SUPER-MACRO" mode wile the DCR-5000 lens is attached.
Magnification: Nominal 0.5x Actual 0.44x/Diagonal, 0.5x/Horizontal
Lens construction: 1G/1E Optical coated glass element
Mounting threads: 52mm
Front filter size: None
Size/Weight:: 90x26mm/140g
Specifications
RT5245C7 lens holder is Not Included.

DCR-5000 is designed to focus properly when the camera is set in maximum wide & macro mode.
DCR-150 Macro/Close-Up lens
You can simply "Snap On" DCR-150 Macro lens onto RT5245C7 lens holder.(Shooting distance from the object 175mm)
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-150 53x18mm/50g.

RT5245C7 lens holder is Not Included.
Specifications


Click camera for actual comparison images.
DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto RT5245C7 lens holder.(Shooting distance from the object 107mm)

Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-250 53x18mm/60g.

RT5245C7 lens holder is Not Included.
Specifications

MSN-202 Super Macro/Close-Up lens
You can simply "Snap On" MSN-202 Super Macro lens onto the RT5245C7 by using a universal mount UAC3500 and it will be able to take macro images with minimum distortion at the maximum telephoto position of C-740UZ / C-745UZ / C-750UZ / C-755UZ / C-760UZ / C-765UZ / C-770UZ cameras.
(Shooting distance from the object ;30mm in maximum telephoto mode.)
Magnification: 9.3x, compared to camera's max.wideangle macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-202 42x22mm/60g.

UAC3500 Universal adapter is Included.


MSN-505 Super Macro/Close-Up lens
With MSN-505 Super Macro lens attached, the camera captures an intricate tiny object like 3.5mm x 2.6mm for a frame-filling enlarged close-up image from the distance of 18mm to the object at the maximum telephoto position.You can simply "Snap On" MSN-505 Super Macro lens onto the filter threads of RT5245C7 Tube adapter by using a universal mount UAC3500 and it will be able to capture macro images with minimum distortion at the maximum telephoto position of C-740UZ / C-745UZ / C-750UZ / C-755UZ / C-760UZ / C-765UZ / C-770UZ cameras.

Magnification: 12x, compared to camera's max.wideangle macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-505 42 x 24mm/86g.

UAC3500 Universal adapter is Included.
PFR-C70 Protection Filter Kit
The filter is designed to protect your valuable camera lens from air pollution or scratches, and it comes with a cap. The multi-coated surfaces will help maintain the original optical performance of your camera.
Filter: Front: 52mm size, Rear: 52mm size
(Filter Cap included.)



RT5245C7 lens holder is Included.




PLP-C70 Polarizer and MC Protection Filter Kit
PLP-C70 is the kit of Multi-Layer Coated Protection filter, a Linear Polarizer filter and a Tube Adapter to mount on C-740UZ/C-745UZ/C-750UZ/C-755UZ/C-760UZ/C-765UZ/C-770UZ Digital Camera. The package comes with a pouch, a filter cap and an instruction manuals.
Raynox Linear Polarizer Filter suppresses unwanted light reflection such as on the glass or the water. It maintains auto focus function when the filter is attached.
Filter: Front: 52mm size, Rear: 52mm size
(Filter Cap included.)

RT5245C7 lens holder is Included.


CAMERA STAND KS-2000 FOR MACRO IMAGING
A camera stand with built-in light source and height adjustable camera mount.




WMV VIDEO FILE(WMV 480KB)
(480KB)
MOV VIDEO FILE(MOV 3400KB)
(3400KB)
WMV VIDEO FILE(WMV 600KB)
(600KB)
MOV VIDEO FILE(MOV 3600KB)
(3600KB)




RT5245C7 Tube Adapter
This is a lens holder for mounting DCR series lenses to
SP-500UltraZoom/C-740Ultra Zoom/C-745UltraZoom/C-750UltraZoom/C-755UltraZoom/
C-760UltraZoom/C-765UltraZoom/C-770UltraZoom camera.


F52-M45.6mm size Tube Adapter
Set or take off the lens holder when the camera power is off.

Do not use the built-in flash while the lens is attached.
The DCR-CF185PRO/DCR-FE180PRO lenses weigh 560g (1.24lbs)/685g (1.5 lbs)and they are rather heavy stuff and may limit the way of shooting condition.Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of  camera's zoom lens.
Raynox wideangle conversion lenses were designed to use at maximum wideangle position of  camera's zoom lens unless specified.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is neither made for dust-free nor moisture/water-proof.
The production of MSN-200 & MSN-500 have been discontinued in Nov. 2005 and they were replaced by MSN-202 & MSN-505.
*You may need a lens holder RT5245C7 for mounting DCR lenses onto C-740UltraZoom/C-750UltraZoom/C-745UltraZoom/C-755UltraZoom/C-770UltraZoom cameras.

*The cosmetic designs may change without prior notice.
