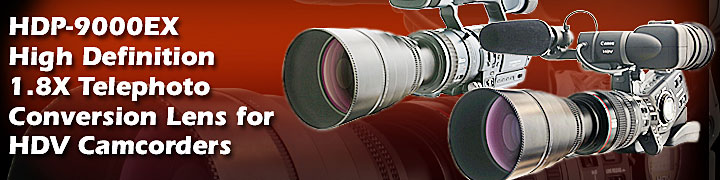

HDP-9000EX High Definition Telephoto conversion Lens 1.8x
Especially developed for using with a large aperture taking lens of 4K/High Definition camera, extending the focal length 1.8 times. Brings a distant subject up very close in maintaining the original superb image quality.
HDP-9000EX lens is originally designed in high resolution formula getting an amazing 280 L/mm resolution power at center. It perfectly suits to a high definition camera.
The lens comes with an originally made Lens Shade which shuts a flare and ghost image effect considerably and the lens case. These are packed with the lens in the carton together.

With the HDP-9000EX lens attached, there will be no influence on F number of the master lens.

The lens has a mounting thread of 72mm, and with an adapter ring of 62mm, 77mm or 82mm, which are sold separately, the lens can be attached on the suitable camera lens.





Click lens for actual comparison images.
  Specifications & Measurements
  Construction Sturdy and solid metal body(except the Lens Shade)
  Magnification Nominal 1.8x Actual 1.8x Diagonal, 1.8x Horizontal
  Lens construction 2-group/4-element, Coated optical glass elements
  Front Filter thread 108mm Pitch0.75
  Mounting thread 72mm Pitch0.75
  Dimensions 210mm x 120mm
  Weight 825g(29oz) including Lens Shade
  Accessories Lens protection case, Lens shade, Lens caps,
Instruction manuals


The lens shade will cut an unwanted light beam, and it prevents flare and ghost image effect considerably.


Cross reference table
PAGE TOP

Canon XL 1/XL 2, XL H1
with 20x Zoom lens
SONY HVR-Z7/Z7E
with 12x Zoom lens
SONY HDR-FX1000, FX1000E, AX2000, AX2000E, HVR-Z5E, HVR-Z5U, HXR-NX5U, NX5E HD Camcorders

These are the comparison movies taken by a 20x zoom High Definition camera with or without the HDP-9000EX lens attached,
at the same distance.
(16:9 mode)

These are the comparison movies taken by a 12x zoom High Definition camera with or without the HDP-9000EX lens attached,
at the same distance.
(16:9 mode)



These are the comparison movies taken by a 20x zoom High Definition camera with or without the HDP-9000EX lens attached,
at the same distance.
(16:9 mode)

With HDP-9000EX lens on, there will be a darkening at corners (vignetting) when the camera is zoomed towards wide angle side, though the starting point of darkening may vary depending on the camera in use. For example, with Sony HDR-FX1/HVR-Z1 it does not occur between 6x and 12x zoom area, With SONY HDR-FX7/HVR-V1 it does not occur between 5x and 20x zoom area, With SONY HVR-Z7/Z7E 12x zoom lens it does not occur between 8x and 12x zoom area, With Canon XL 1/XL 2, XL H1 20x zoom it will be between 6x and 20x zoom area, And with XH G1/XH A1 it will be between 13x and 20x zoom area. The 'vignetting' means the darkened corners on the picture, and it may happen with only at one corner or two or all four, depending upon the characteristics of the camera in use.

The standard accessories come with the HDP-9000EX lens

Lens hood / Sun shade Lens case Lens caps


RA7282 F72-M82mm Adapter ring
for 82mm filter size.(Sold separately)
RA7277 F72-M77mm Adapter ring
for 77mm filter size.(Sold separately)
RA7267 F72-M67mm Adapter ring
for 67mm filter size.(Sold separately)
RA7262 F72-M62mm Adapter ring
for 62mm filter size.(Sold separately)


RA7258 F72-M58mm Adapter ring
for 58mm filter size.(Sold separately)

RA7255 F72-M55mm Adapter ring
for 55mm filter size.(Sold separately)
RA7252 F72-M52mm Adapter ring
for 52mm filter size.(Sold separately)
PAGE TOP


The specifications and cosmetic designs may change without a notice.
HDP-9000EX lens weighs 825g and it's rather bulky, and please support the lens by hand carefully in shooting, and dismount the lens after completing the shooting.
With HDP-9000EX lens on, there will be a darkening at corners (vignetting) when the camera is zoomed towards wide angle side, though the starting point of darkening may vary depending on the camera in use. For example, with Sony HDR-FX1/HVR-Z1 it does not occur between 6x and 12x zoom area, With SONY HDR-FX7/HVR-V1 it does not occur between 5x and 20x zoom area, With SONY HVR-Z7/Z7E 12x zoom lens it does not occur between 8x and 12x zoom area, With Canon XL 1/XL 2, XL H1 20x zoom it will be between 6x and 20x zoom area, And with XH G1/XH A1 it will be between 13x and 20x zoom area. The 'vignetting' means the darkened corners on the picture, and it may happen with only at one corner or two or all four, depending upon the characteristics of the camera in use.
Please note that the minimum shooting distance of the camera may extend three times when HDP-9000EX lens is attached on.
There will be no influence on the original F number of the camera when HDP9000EX lens is on. It remains the original F number of the camera lens.
Screw-thread pitch size is 0.75mm unless specified.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is neither made for dust-free nor moisture/water-proof.
