Raynox High Definition conversion lenses for Canon EOS M Compact System Digital Camera


* 8 models are compatible with Canon EOS M compact system digital camera with EF-M18-55mm f/3.5-5.6 IS STM


High Definition Conversion Lens, Semi-Fisheye 0.3x

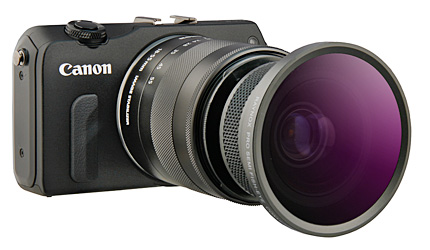

Click camera for actual comparison images.	HD-3035PRO High Definition Semi-Fisheye Conversion Lens 0.3x The model HD-3035PRO Semi-Fish Eye conversion lens is designed to broaden the angle of view, including 180% more area in the picture, when attached to the EF-M18-55mm f/3.5-5.6 IS STM zoom lens. How to mount the conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 1) Firstly remove any adapter ring from HD-3035PRO. 2) Mount the Raynox RA3752 adapter ring(sold separately) onto the filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 3) Mount the conversion lens directly on the 37mm filter threads of Raynox RA3752 adapter ring. The HD-3035PRO may create vignetting image(max wideangle position). Vignetting may Not disappear by zooming toward to Telephoto position. It is limited to use at F=18mm when used on EF-M18-55mm f/3.5-5.6 STM zoom lens.
	Magnification: Nominal 0.3x Actual 0.34x/Diagonal, 0.44x/Horizontal(4:3ratio) Lens construction: 2G/2E Optical coated glass elements Minimum focusing distance: 1cm Effective zooming with conversion lens on: 1x Front filter size: None Mounting threads: 37mm Size/Weight: 45 x 70mm/143g(5.0oz) Accessories included: LS-03W Lens shade mask, Lens caps, Lens case, 5-adapter rings 27mm/30mm/30.5mm /34mm/43mm filter size. Instruction manuals. LS-03W Lens shade mask is included with HD-3035PRO. Specifications
	PAGE TOP

Captures a super panoramic view in high-definition image quality

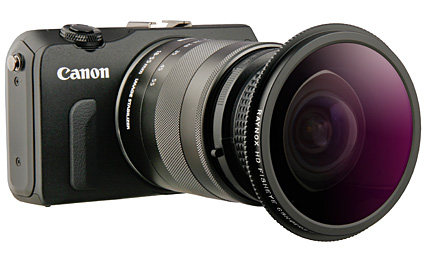

Click camera for actual comparison images.	HDP-2800ES High Definition Diagonal Fisheye conversion Lens 0.28x The HDP-2800ES lens is a conversion lens for capturing an ultra wide angle image in using with the High Definition Digital camcorder. The lens is made of the high index optical glass in 3-group/3-element formula, and it's made in compact size and light weight. It achieved a high resolution power of 475 lines/mm at center (MTF30%). Mounting on the wide-angle lens of f=26mm or less (35mm film equivalent) focal length, it will be possible to shoot the scene of 180-degree diagonal. The two adapter rings of 37mm and 43mm come with the lens in the original factory package for use with the same filter sized lenses. How to mount the conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 1) Firstly remove any adapter ring from HDP-2800ES. 2) Mount the Raynox RA5252 or RA5252B spacer ring(sold separately) onto the filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 3) Mount the conversion lens directly on the 52mm filter threads of Raynox 52mm spacer ring. Although mounting size of HDP-2800ES is 52mm, it is necessary to mount 52mm spacer ring in order to protect master zoom lens. The HDP-2800ES may create vignetting image(max wideangle position). Vignetting may Not disappear by zooming toward to Telephoto position. It is limited to use at F=18mm when used on EF-M18-55mm f/3.5-5.6 STM zoom lens. A designing calculation figure.
	Magnification: Nominal 0.28x Actual: 0.18x / Diagonal, 0.32x / Horizontal Minimum focusing distance: 1cm Effective zooming with conversion lens on: 1x Lens construction: 3G/3E Optical coated glass elements Mounting threads: 52mm Pitch0.75 Front filter size: None Size/Weight: 41 x 77mm/205g(7.2oz) Accessories included: Lens caps, Lens case, 2-adapter rings 37mm/43mm filter size. Specifications
	PAGE TOP

Captures an amazing high definition fish-eye view

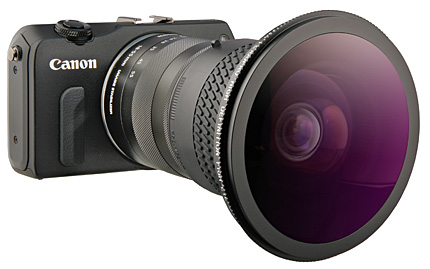

Click camera for actual comparison images.	DCR-FE181PRO Fish-Eye(Full Frame) Lens DCR-FE181PRO lens captures an amazing ultra-wideangle view of 180 degrees on diagonal line. It's a completely new high definition lens made of the high index optical lens with a 4-group/5-element formula. How to mount the conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 1) Firstly remove any adapter ring from DCR-FE181PRO. 2) Mount the Raynox RA6252 adapter ring* onto the filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 3) Mount the conversion lens directly on the 62mm filter threads of Raynox RA6252 ring. * Included in the original DCR-FE181PRO box. Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand. Specifications
	Magnification: Nominal 0.24x Actual 180-degree/Diagonal, 0.24x/Horizontal Minimum focusing distance: 1cm Effective zooming with conversion lens on: 1x-4x Lens construction: 4G/5E Optical coated glass elements Mounting threads: 62mm Front filter size: None Size/Weight: 100 x 69mm/685g(24oz) Accessories included: Lens caps, Lens pouch, 4-adapter rings 43mm/52mm/55mm/58mm filter size. Specifications
	PAGE TOP

High quality Circular Fish-eye lens

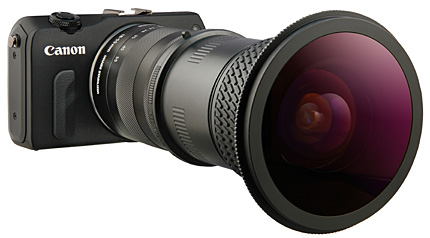

Click camera for actual comparison images.	DCR-CF187PRO High Definition 185º Circular Fish-Eye　Conversion Lens Upon mounting on the zoom lens, The DCR-CF187PRO opens the field of view to the circular fisheye image. It's a completely new high definition lens made of the high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion. How to mount the conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 1) Firstly remove any adapter ring fromDCR-CF187PRO. 2) Mount the Raynox RA6252 adapter ring* onto the filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 3) Mount the conversion lens directly on the 62mm filter threads of Raynox RA6252 ring. * Included in the original DCR-CF187PRO box. Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
	Magnification: Nominal 0.21x Actual 185-degree/Diagonal, 185-degree/Horizontal Minimum focusing distance: 1cm Effective zooming with conversion lens on: 1x-4x Lens construction: 4G/6E Optical coated glass elements Mounting threads: 62mm Front filter size: None Size/Weight: 96 x 98mm/565(20oz) Accessories included: Lens caps, Lens pouch, 4-adapter rings 43mm/52mm/55mm/58mm filter size. Specifications
	PAGE TOP

Explore a world you never knew existed

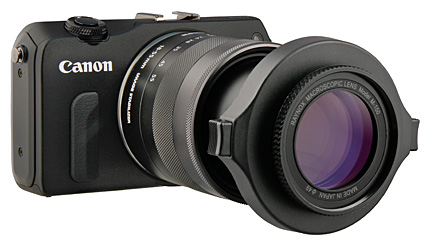

Click camera for actual comparison images.	DCR-150 Macro Conversion lens You can simply "Snap On" DCR-150 Macro lens onto 52mm filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens.(Shooting distance from the object ; 210mm in maximum telephoto zooming position.) How to mount the conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 1) Mount the Macro conversion lens on the 43mm filter threads of UAC2000 Universal adapter. 2) Snap on UAC2000 directly on the 52mm filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. UAC2000 universal adapter is included in the DCR-150 box. The DCR-150 may create slight vignetting image at F=55mm(max Telephoto position) when used on EF-M18-55mm f/3.5-5.6 STM zoom lens. Click and see the actual enlarged image taken with the macro conversion lens+EF-M18-55mm f/3.5-5.6 IS STM zoom lens.
	Magnification: 4.8-Diopter Lens construction: 2G/3E Optical coated glass elements Smallest field size: 82.9mm in maximum telephoto position Effective zooming with conversion lens on: F=55mm(Max. telephoto position) Front filter size: 49mm Mounting threads: 43mm Size/Weight: Lens only - 18 x 53mm/50g(1.8oz) Accessories included: Lens caps, Lens case, Universal adapter UAC2000. Specifications
	PAGE TOP

Explore a world you never knew existed
Click camera for actual shooting images.	DCR-250 Super Macro Conversion Lens You can simply "Snap On" DCR-250 Macro lens onto 52mm filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. The shooting distance to the object is about 109mm in maximum telephoto zooming position. How to mount the conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 1) Mount the Macro conversion lens on the 43mm filter threads of UAC2000 Universal adapter. 2) Snap on UAC2000 directly on the 52mm filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. UAC2000 universal adapter is included in the DCR-250 box. The DCR-250 may create slight vignetting image at F=55mm(max Telephoto position) when used on EF-M18-55mm f/3.5-5.6 STM zoom lens. Click and see the actual enlarged image taken with the macro conversion lens+EF-M18-55mm f/3.5-5.6 IS STM zoom lens.
	Magnification: 8-Diopter Lens Construction: 2G/3E Optical coated glass elements Smallest field size: 49.7mm in maximum telephoto position Effective zooming with conversion lens on: F=55mm(Max. telephoto position) Front filter size: 49mm Mounting threads: 43mm Size/Weight: Lens only - 18 x 53mm/60g(2.1oz) Accessories included: Lens caps, Lens case, Universal adapter UAC2000. Specifications
	PAGE TOP

Turn your EOS M camera into a powerful microscope

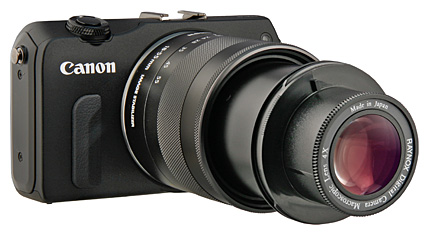

MSN-202 mounted with RA3752 adapter ring(Sold separately) Click camera for actual comparison images.	MSN-202 Super Macro Conversion Lens You can simply "Snap On" MSN-202 Super Macro lens onto 52mm filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens by using a universal mount UAC3500 and it will be able to take macro images with minimum distortion at the maximum telephoto position of in maximum telephoto zooming.) (Shooting distance from the object ;32mm at infinity focusing position.) How to mount the conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens. 1) Mount the Macro conversion lens on the 37mm filter threads of UAC3500 Universal adapter. 2) Snap on UAC3500 directly on the 52mm filter threads of EF-M18-55mm f/3.5-5.6 IS STM zoom lens. There is an another way of mounting conversion lens onto EF-M18-55mm f/3.5-5.6 IS STM zoom lens by using Raynox RA3752 adapter ring(sold separately) UAC3500 universal adapter is included in the MSN-202 box. The MSN-202 may create vignetting image at F=55mm(max Telephoto position) when used on EF-M18-55mm f/3.5-5.6 STM zoom lens. Click and see the actual enlarged image taken with the macro conversion lens+EF-M18-55mm f/3.5-5.6 IS STM zoom lens.
	Magnification: 25-Diopter Lens construction: 3G/4E Optical coated glass elements Smallest field size: 15.9mm in maximum telephoto position Effective zooming with conversion lens on: F=55mm(Max. telephoto position) Front filter size: None Mounting threads: 37mm Size/Weight: 22 x 42mm/60g(2.1oz) Accessories included: Lens caps, Lens case, Universal adapter UAC3500.
	PAGE TOP

Multi-Layer coated glass filter

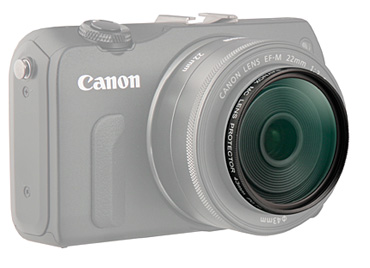

EF-M22mm F2 STM lens	PFR-043MC Lens Protector Filter The filter is designed to protect your valuable EF-M22mm F2 STM lens from finger prints, dust and other dirt or scratches. The multi-layer coated surfaces will help maintain the original optical performance of your camera.
	Mounting threads: 43mm Pitch0.75 Coatings: Multi-Layer Coated.
	PAGE TOP

Multi-Layer coated glass filter

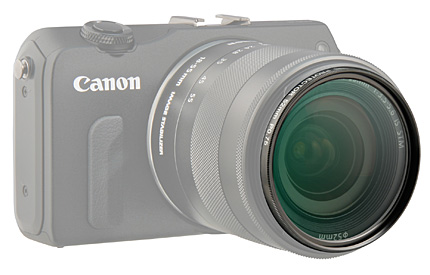

EF-M18-55mm f/3.5-5.6 IS STM zoom lens	PFR-052MC Lens Protector Filter The filter is designed to protect your valuable EF-M18-55mm f/3.5-5.6 IS STM zoom lens from finger prints, dust and other dirt or scratches. The multi-layer coated surfaces will help maintain the original optical performance of your camera.
	Mounting threads: 52mm Pitch0.75 Coatings: Multi-Layer Coated.
	PAGE TOP

● The cosmetic design may change without a prior notice.
● There will be no reduction of light value when these conversion lenses are attached on the camera's lens(Except DCR-150, DCR-250, MSN-202, MSN-505 macro lenses.)
● Depending upon the condition of shooting, especially when the lighting is not bright enough, there may be possibility of creating a flare effect which reduces the image quality. When the conversion lens is attached, please make sure that the object is under the bright condition.
●The DCR-FE181PRO lens weighs 685g (24oz) and it's a rather heavy stuff and may limit the way of shooting condition. Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
●The DCR-CF187PRO lens weighs 560g (20oz) and it's a rather heavy stuff and may limit the way of shooting condition. Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
● Remote control function may not work properly with conversion lens attached.
● Internal video light/flash may not function with conversion lens attached.
● AF Assist mode may not function properly when the conversion lens is attached.
● All numerical scales and magnification being presented on this page may change depending on the number of pixels on the camera setting.
● An extra caution must be paid to protect the sticking out long lens by hands in carrying around and using the camera with a fisheye lens on.
● To protect the camera from an accidental damage please remove the Conversion Lens before moving the camera and Do not carry around the camera with the Conversion lens attached.
● Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
● The lens is neither made for dust-free nor moisture/water-proof.
● All of Raynox conversion lenses are proudly made in Japan. At our wholly owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
