hd3032pro

The model HD-3035PRO Semi-Fish Eye conversion lens has designed to broaden the angle of view, including 180% more area in the picture, when attached to the lens of High-Definition Camcorder or Digital Camera. It's compatible with up to 6x zoom(Camocrder) area and stays in focus.

The HD-3035PRO has achieved a high definition standard of 520 lines/mm resolution power at center (MTF30%) in the Semi-Fish Eye formula.

There is no quality difference between HD-3032PRO and HD-3035PRO lens.

The production of HD-3035PRO has been discontinued and replaced by the newer model HD-3037PRO.


High-Resolution 520-line/mm


2-group/2-element High Definition design


Ultra Wideangle 0.3x


Lens Shade Mask & 5-adapter ring included


LS-03W Lens shade mask is included with HD-3035PRO.
LS-03W Lens shade mask is Not included with HD-3032PRO.




Click the lens to comparison images.




The lens shade will cut an unwanted light beam, and it prevents flare and ghost image effect considerably. Size: 80 x 9, Weight: 10g.

How to mount the Lens Shade Mask LS-03W.


With LS-03W Lens Shade Mask
LS-03W Lens shade mask is included with HD-3035PRO.
LS-03W Lens shade mask is Not included with HD-3032PRO.
  Specifications & Measurements
  Magnification Nominal 0.3x
On the Digital camera: Actual 0.3x Diagonal, 0.42x Horizontal
On theCamocrder: Actual 0.34x Diagonal, 0.44x Horizontal
  Lens construction 2-group/2-element, Coated optical glass elements
  Image distortion -45% on the digital camera (max.wideangle), -39% on the Camcorder (max.wideangle),
  Front Filter thread None
  Mounting thread 37mm
  Dimensions 45mm x 70mm
  Weight 143g(5.0oz)
  Accessories 5-adapter ring, Lens shade mask, Lens caps, Lens case, Instruction manuals

Cross reference table

PAGE TOP


F= Female thread size, M= Male thread size, 0,5 & 0,75= screw-thread pitch.

HD-3035PRO, HD-3032PRO comes with 5-adapter rings and
it is suitable to 27mm/ 30mm/ 30.5mm / 34mm/ 37mm/ 43mm filter sizes.
The adapter rings other than the above listed sizes are also available from us.(Sold separately)


HD-3035PRO


(2700KB)

(6400KB)



Camera's maximum wideangle view to
Semi-Fish Eye angle of view
in Video Clip taken with
HD-3035PRO/HD-3032PRO and Digital Video Camcorder
WMV VIDEO FILE(WMV 450KB)
(400KB)
MOV VIDEO FILE(MOV 2300KB)
(3500KB)

  PAGE TOP


To the comparison images.

To the comparison images.

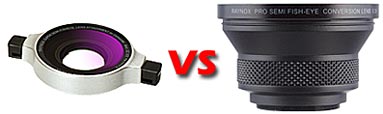

Click the lens to see actual comparison shots taken with QC-303 and HD-3035PRO/HD-3032PRO.
(Please hit re-load button of your browser if you can not see the comparison image.)

The cosmetic designs may change without prior notice.
Remote control function and internal video light/Flash may not work properly with conversion lens attached.
The lens is not compatible with SONY DCR-DVD301/201/101.
Screw-thread pitch size is 0.75mm unless specified.
The lens shade mask model LS-03W is also available separately for the users of HD-3032PRO, HD-3031PRO and HD-3030PRO Semi-Fisheye lens and it can be purchased under the model number RAYNOX LS-03W-K.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is neither made for dust-free nor moisture/water-proof.
