* 4 models are compatible with Panasonic AG-HMC150/151/155/HPX170/175 AVCCAM
Click camera for actual comparison images.
HDP-9000EX High Definition Telephoto conversion Lens 1.8x
Especially developed for using with a large aperture taking lens of High
Definition camera, extending the focal length 1.8 times. Brings a distant subject
up very close in maintaining the original superb image quality.
HDP-9000EX lens is originally designed in high resolution formula getting
an amazing 280 L/mm resolution power at center. It perfectly suits to a high definition camera.
The lens comes with an originally made Lens Shade which shuts a flare and
ghost image effect considerably and the lens case. These are packed with
the lens in the carton together.
HDP-9000EX extends the focal length of AG-150/151/155 camera 13x zoom lens to
655mm telephoto*.
With the HDP-9000EX lens attached, there will be no influence on F number
of the master lens. This model is 72mm direct mounting size.
Construction: Sturdy and solid metal body
(excluding the Lens Shade)
Magnification:
Nominal 1.8x
Actual 1.8x/Diagonal, 1.8x/Horizontal
Lens construction: 2G/4E Optical coated glass elements
Minimum focusing distance: 2m
Effective zooming without vignetting: 12x - 13x zoom(Under-Scanning mode)
Front filter size: 108mm
Mounting threads: 72mm
Size/Weight: 210 x 120mm/825g(29oz)
(including the Lens Shade)
Accessories included: Lens Shade, Lens caps, Lens case. Specifications
The lens shade will cut an unwanted light beam,
and it reduces flare and ghost image effect considerably.

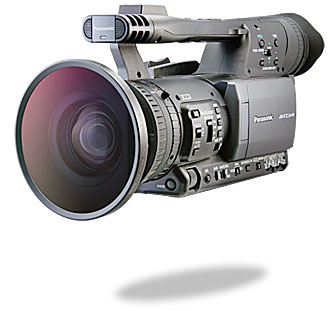

HDP-5072EX High Definition
Semi-Fisheye conversion Lens 0.5x
The model HDP-5072EX is a 0.5x semi-fish eye conversion lens particularly designed for use with the High Definition large aperture camera lens, and it has a resolution power of 630 lines/mm at
center (MTF30%). With the HDP-5072EX lens mounted on a High Definition camera's lens, it broadens 100% more the field of view than the original widest angle of view. In shooting a subject of short distance with HDP-5072EX lens on, it creates an interesting image of semi-fisheye effect, taking an advantage of the -31% distortion nature, but it takes a panoramic picture of 0.5x wide angle coverage without bothering the distortion image, when taken a distant subject.
Construction: Sturdy and solid metal body
Magnification:
Nominal 0.5x
Actual 0.44x/Diagonal, 0.5x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 6x zoom
Front filter size: None
Mounting threads: 72mm
Size/Weight: 42 x 125mm/640g(22.6oz)
Upon mounting on the zoom lens, The DCR-CF187PRO opens the field of view
to the circular fisheye image. It's a completely new high definition lens
made of the high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion. Raynox Model RA6272(sold separately) adapter ring is required
for use with the DCR-CF187PRO + Panasonic AG-HMC150, 151, 155, HPX170, 175 AVCCAM.
Construction: Sturdy and solid metal body
Magnification: Nominal 185-degree,
Actual 185-degree/Diagonal, 185-degree/Horizontal
Lens construction: 4G/6E Optical coated glass elements
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 4x zoom
Front filter size: None
Mounting threads: 62mm
Size/Weight: 98 x 96mm/560g(20oz)
Click camera for actual comparison images.
How ?
Add one more DCR-5320PRO onto the same set, giving you
8 different diopter choice of 2, 3, 4, 5, 6, 7, 8 and 10.

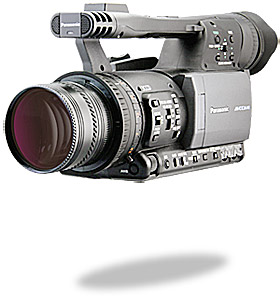

DCR-5320PRO 3-in-1
High Definition Macro Conversion Lens
The DCR-5320PRO High Definition Macro Conversion lens is particularly designed
to use with the high-end digital, film and High Definition cameras, resulting
in an amazing resolution power of 200 lines/mm at center (MTF30%) with a low dispersion. With the Macro lens attached on the camera's lens,
it makes possible to approach the object very close for macro shooting.
The model consists of two independent lenses, one is with 2-diopter magnification
and the other with 3-diopter. It also makes a 5-diopter lens by coupling the both lenses together. Taking advantage of using in three ways, you
can shoot the object at the distances of either 50cm or 30cm or 17cm, depending
upon the nature of a subject. All lens glass elements are fully coated
for the optimum light transmittance and fine image quality.
The adapter rings which fit to the 52mm, 55ｍｍ, 58mm, 62mm, 67mm, 77mm,
82mm threads (except 72mm) are sold separately. This model is 72mm direct mounting size.
LENS
2-Diopter
3-Diopter
5-Diopter
Construction
1G/2E
2G/3E
3G/5E
Weight
105g
290g
395g
Length
24mm
39mm
59mm
Filter size
72mm
72mm
72mm
Mount size
72mm
72mm
72mm
Focusing Distance
486mm*
311mm*
170mm*
Zooming capability
2x-13x (16:9)
2x-13x (16:9)
3x-13x (16:9)
* Camera focus set in infinity ∞.
* In under scanning mode.
* All surfaces fully coated
* Distances shown here are between top of lens to the object. Specifications

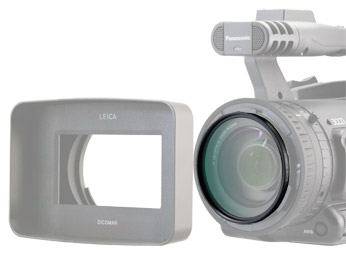

The original Lens Shade can be attached on the camera lens with the PFR-072MC
filter on.
The PFR-072MC filter is made for attaching permanently with Panasonic AG-HMC150, 151, 155, HPX170, 175 AVCCAM., protecting the expensive zoom lenses from dust, dirt and accidental damage.
The filter is made of high grade optical glass multi-layer coated for a
maximum high fidelity to the original characteristic of the camera lens.
A filter cap is included in the set.
● The cosmetic designs may change without prior notice.
●The HDP-9000EX, DCR-CF187PRO, DCR-CF185PRO, lenses are rather heavy stuff and may limit the way of shooting condition. Be
careful in handling the camera with the lens attached, such as supporting
or protecting the lens by your own hand at all time while shooting images.
● There will be no reduction of light value(F-number) when these conversion lenses
are attached on the camera's lens(Except DCR-5320PRO, DCR-150, DCR-250, MSN-202 and MSN-505
macro lenses.)
● Depending upon the condition of shooting, especially when the lighting
is not bright enough, there may be possibility of creating a flare effect
which reduces the image quality. When the conversion lens is attached,
please make sure that the object is under the bright condition.
● Remote control function may not work properly with conversion lens attached.
● Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of camera's zoom lens.
● Raynox fisheye conversion lenses were designed to use at maximum wideangle
position of camera's zoom lens unless specified. ●Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image. ●Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image. ●All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality. ●The lens is neither made for dust-free nor moisture/water-proof.
