Click camera for actual comparison images.
|

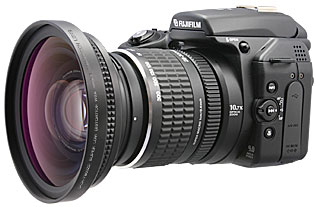

DCR-7900ZD High Definition
Wideangle Conversion Lens 0.79x
The DCR-7900ZD 0.79x wide-angle lens is a high definition conversion lens
made to broaden the field of view when attached on the digital camera's
lens, and it's fabricated with two of the high index optical glass,
resulting in a high resolution power of 230 lines/mm at center (MTF30%) at center. It achieved the level of almost non-distortion, 0.9% rate.
It creates an unusually fine and non distorted wide angle image.
You can mount directly onto S9600, S9500, S9100, S9000, S6500fd, S6000fd
cameras.
Specifications |
 |
|
|
Click camera for actual comparison images.
|

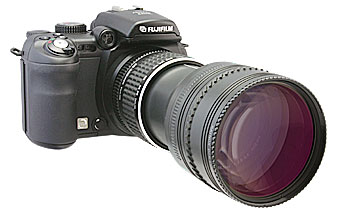

DCR-5320PRO 3-in-1High Definition
Triple Macro Conversion Lens
The DCR-5320PRO Macro Close-up lens is made of two independent lenses of
2-diopter magnification and 3-diopter one, both fabricated in doublet formula
for less color aberration at corners.@By putting the two lenses together,
it creates the high 5-diopter magnification macro close-up conversion lens
with the excellent high resolution power of 200 lines/mm at center (MTF30%).
The Model RA7258 adapter ring is required for use with the DCR-5320PRO
on the S9600, S9500, S9100, S9000, S6500fd, S6000fd cameras.
RA7258 adapter ring is Not Included.
Specifications
 |
|
|
|
Click camera for actual comparison images. |
 |
Click camera for actual comparison images. |
DCR-1540PRO 1.54x
High Definition telephoto Conversion Lens
DCR-1540PRO lens extends the focal length of FinePix S9600/S9500/S9100/S9000/S6500fd/S6000fd camera zoom lens to 460mm telephoto lens! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.
340 lines/mm resolution power at center (MTF30%)
The Model RA5258A Raynox adapter ring(sold separately) is required for
use with the DCR-1540PRO on the FinePix S9600, S9500, S9100, S9000, S6500fd,
S6000fd cameras.
Magnification: Nominal 1.54x
Actual: 1.54x / Diagonal, 1.54x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
Specifications
RA5258A adapter ring is Not included.
|

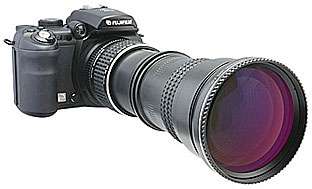

DCR-2025PRO 2.2x High Definition telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of Fujifilm FinePix S9600/S9500/S9100/S9000/S6500fd/S6000fd
zoom lens to 660mm super telephoto ! (35mm film equivalent) It's a completely
new high definition lens made of the high index optical lens with a 2-group/4-element
formula.
260 lines/mm resolution power at center (MTF30%)
Model RA6258 Raynox adapter ring for 58mm filter size is required for use
with the DCR-2025PRO + FinePix S9600, S9500, S9100, S9000, S6500fd, S6000fd
cameras.
Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 5m
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 86mm/275g.(9.7oz)
DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.
Specifications
Slight vignetting(Darkening corners) may appear as shown on the actual taken image.
|
|
|
|
Click camera for actual comparison images. |
|
Click camera for actual comparison images. |
DCR-CF185PRO High Definition 185º Circular Fish-Eye Conversion Lens
Upon mounting on the zoom lens, The DCR-CF185PRO opens the field of view
to the ultra wide angle, the diagonal fisheye angle and to the circular
fisheye images. It's a completely new high definition lens made of the
high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.
Model RA6258 Raynox adapter ring for 58mm filter size is required for use
with the DCR-CF185PRO + FinePix S9600, S9500, S9100, S9000, S6500fd, S6000fd
cameras.
Magnification: Nominal 185-degree, Actual 185-degree/Diagonal, 185-degree/Horizontal
Lens construction: 4G/6E, made of optical glass lenses, all surfaces fully
coated.
Mounting threads: 62mm
Size / Weight: 96 x 98 / 560g(20oz)
RA6258 and RA6252 adapter rings are Included.
Specifications
|
DCR-FE180PRO Fish-Eye(Full Frame) Lens
DCR-FE180PRO lens captures an amazing ultra-wideangle view of 180 degrees
on diagonal line at the wideangle positionEE=8.1mm). Zooming may be limited
to 5x zooming when attached to the FinePix S9600/S9500/S9100/S9000/S6500fd/S6000fd
digital camera. It's a completely new high definition lens made of the
high index optical lens with a 4-group/5-element formula.
480 lines/mm resolution power at center (MTF30%)
Model RA6258 Raynox adapter ring for 58mm filter size is required for use
with the DCR-FE180PRO + FinePix S9600, S9500, S9100, S9000, S6500fd, S6000fd
cameras.
Magnification: Nominal 0.24x
Actual 180-degree/Diagonal
Lens construction: 4G/5E Optical coated glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g(24oz)
RA6258 and RA6252 adapter rings are Included.
Specifications
|
|
|
|
|
|
|
Click camera for actual comparison images. |
|
Click camera for actual comparison images. |
DCR-150 Macro/Close-Up lens
You can simply "Snap On" DCR-150 Macro lens onto the filter threads
of FinePix S9600, S9500, S9100, S9000, S6500fd, S6000fd cameras. (Shooting distance from the object ; 187mm in maximum telephoto macro mode.)
Magnification: 2.2x compare to camera's macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-150 53x18mm/50g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
Specifications
|
DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto the filter threads of FinePix S9600, S9500, S9100, S9000, S6500fd, S6000fd cameras. (Shooting distance from the object ;117mm in maximum telephoto macro mode.)
Magnification: 2.9x compare to camera's macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-250 53x18mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
Specifications
|
|
|
|
Click camera for actual comparison images.
|
|
Click camera for actual comparison images.
|
MSN-202 Super Macro/Close-Up lens
You can simply "Snap On" MSN-202 Super Macro lens onto the lens filter threads.(52-67mm) by using a universal mount UAC3500 and it will be able to take macro images with minimum distortion at the maximum telephoto position of FinePix S9600, S9500, S9100, S9000, S6500fd, S6000fd cameras.
(Shooting distance from the object ;35mm in maximum telephoto mode.)
Magnification: 8x compare to original macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-200 42x22mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
UAC3500 Universal adapter is Included in MSN-202.
UAC3500 Universal adapter is NOT included in MSN-200. |
MSN-505 Super Macro/Close-Up lens
With MSN-505 Super Macro lens attached, the camera captures an intricate tiny object like 3.5mm x 2.7mm for a frame-filling enlarged close-up image from the distance of 17mm to the object at the maximum telephoto position.You can simply "Snap On" MSN-500 Super Macro lens onto the filter
threads of FinePix S9600, S9500, S9100, S9000, S6500fd, S6000fd cameras by using a universal mount UAC3500 and it will be able to capture macro
images with minimum distortion at the maximum telephoto position of FinePix
S9600/S9500/S9100/S9000/S6500fd/S6000fd camera.
Magnification: 12x compare to original macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-500 42 x 24mm/86g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
UAC3500 Universal adapter is Included in MSN-202.
UAC3500 Universal adapter is NOT included in MSN-200.
|
|
|
|
 |
|
 |
UAC3500 Universal Adapter for 52-67mm filter size.
You can simply "Snap On" UAC-3500 Universal Adapter on the lens
filter threads of 52-67mm.
Male threads size: 52-67mm
Female threads size: 37mm
|
CAMERA STAND KS-2000 FOR MACRO IMAGING
A camera stand with built-in light source and height adjustable camera
mount.
(480KB)
(3400KB)
(600KB)
(3600KB) |
|
|
|
|
The DCR-CF185PRO/DCR-FE180PRO lenses weigh 560g (1.24lbs)/685g (1.5 lbs)and
they are rather heavy stuff and may limit the way of shooting condition.Be
careful in handling the camera with the lens attached, such as supporting
or protecting the lens by your own hand.
Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of camera's zoom lens.
Raynox wideangle conversion lenses were designed to use at maximum wideangle position of camera's zoom lens unless specified.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
Do Not use the built-in flash while conversion lens is attached.
The production of MSN-200 & MSN-500 have been discontinued in Nov. 2005 and they were replaced by MSN-202 & MSN-505.
*The cosmetic designs may change without prior Notice.
Use of adapters other than Raynox made may result poor resolution at the corners of the image.
