Click camera for actual comparison images.

DCR-2025PRO 2.2x High Definition telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of Panasonic Lumix DMC-FZ50/FZ30 zoom lens to 920mm super telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.

260 lines/mm resolution power at center (MTF30%)

Model RA6255 Raynox adapter ring for 55mm filter size is required for use with the DCR-2025PRO + Lumix DMC-FZ50/FZ30 camera.

Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 9m
Zoom capability: Max. telephoto
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 86mm/275g.(9.7oz)

DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.

Specifications

Raynox lens shade: model LS-082
Weight: 69g.(2.4oz)


The lens shade will cut an unwanted light beam, and it prevents flare and ghost image effect considerably.







Click camera for actual comparison images.





Click camera for actual comparison images.

DCR-7900ZD High Definition
Wideangle Conversion Lens 0.79x
The DCR-7900ZD 0.79x wide-angle lens is a high definition conversion lens made to broaden the field of view when attached on the digital camera's lens, and it's fabricated with two of the high index optical glass, resulting in a high resolution power of 230 lines/mm at center (MTF30%) at center. It achieved the level of almost non-distortion, 0.9% rate. It creates an unusually fine and non distorted wide angle image.
Model RA6255 adapter ring is required for use with the DCR-7900ZD.

RA6255 adapter ring is Not Included.

Specifications
DCR-5320PRO 3-in-1High Definition
Triple Macro Conversion Lens

The DCR-5320PRO Macro Close-up lens is made of two independent lenses of 2-diopter magnification and 3-diopter one, both fabricated in doublet formula for less color aberration at corners. By putting the two lenses together, it creates the high 5-diopter magnification macro close-up conversion lens with the excellent high resolution power of 200 lines/mm at center (MTF30%).

The Model RA7255 adapter ring is required for use with the DCR-5320PRO on the DMC-FZ50/FZ30 camera

Specifications




Click camera for actual comparison images.

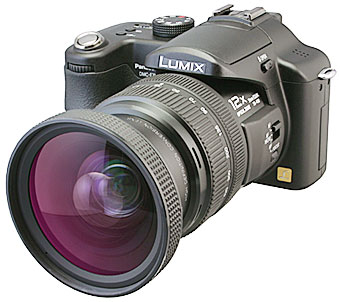

HD-6600PRO-55 High Definition Wideangle
Conversion Lens 0.66x

The lens creates super wide angle view of f=23mm (35mm film equiv.), compatible up to 3x zooming position(f=24mm) when mounted on the DMC-FZ50/FZ30 camera. HD-6600PRO-55 lens controls the image distortion percentage at the least, less than -1.3%. HD-6600PRO-55 incorporates the specially designed 55mm size lens holding mount which makes perfect match with DMC-FZ50/FZ30 Digital Camera
350 lines/mm resolution power at center (MTF30%)
Magnification: Nominal 0.66x
Actual 0.66x/Diagonal, 0.66x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Mounting threads: 55mm
Front filter size: 72mm
Size/Weight:: 77 x 40mm/178g



Click camera for actual comparison images.



Click camera for actual comparison images.

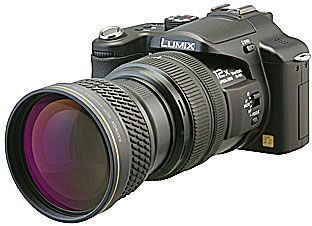

DCR-1542PRO 1.54x
High Definition telephoto Conversion Lens

DCR-1542PRO lens extends the focal length of Lumix DMC-FZ50/FZ30 camera zoom lens to 640mm telephoto lens! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group /4-element formula.
340 lines/mm resolution power at center (MTF30%)
The Model RA5255B Raynox adapter ring(sold separately) is required for use with the DCR-1542PRO on the Lumix DMC-FZ50/FZ30 camera

Magnification: Nominal 1.54x
Actual: 1.54x / Diagonal, 1.54x / Horizontal
Minimum focusing distance: 4.5m
Zoom capability: f=88.8mm-f=45mm
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
Specifications

RA5255B adapter ring is Not included.
DCR-5000 Super Wideangle lens 0.5x
Production discontinued - July 2008
The lens creates 0.5x Super wide angle view of f=18mm(35mm film equiv.)
RA5255B adapter ring is required for use with the DCR-5000.
Magnification: Nominal 0.5x Actual 0.44x/Diagonal, 0.5x/Horizontal
Lens construction: 1G/1E Optical coated glass element
Mounting threads: 52mm
Front filter size: None
Size/Weight:: 90x26mm/140g

Specifications
DCR-5000 is designed to focus properly when the camera is set in maximum wide & macro mode.

RA5255B adapter ring is Not Included.



Click camera for actual comparison images.




Click camera for actual comparison images.
DCR-CF187PRO High Definition 185º Circular Fish-Eye Conversion Lens
Upon mounting on the zoom lens, The DCR-CF187PRO opens the field of view to circular fisheye image. It's a completely new high definition lens made of the high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.
Model RA6255 Raynox adapter ring for 55mm filter size is required for use with the DCR-CF187RO + Lumix DMC-FZ50/FZ30 camera.
Magnification: Nominal 185-degree, Actual 185-degree/Diagonal, 185-degree/Horizontal
Lens construction: 4G/6E, made of optical glass lenses, all surfaces fully coated.
Mounting threads: 62mm
Size / Weight: 96 x 98 / 560g(20oz)

RA6258, RA6255, RA6252 and RA6243 adapter rings are Included.

Specifications

DCR-FE181PRO Fish-Eye(Full Frame) Lens
DCR-FE181PRO lens captures an amazing ultra-wideangle view of 180 degrees on diagonal line at the wideangle position・・=8.1mm). Zooming may be limited to 5x zooming when attached to the Lumix DMC-FZ50/FZ30 digital camera. It's a completely new high definition lens made of the high index optical lens with a 4-group/5-element formula.
480 lines/mm resolution power at center (MTF30%)

Model RA6255 Raynox adapter ring for 55mm filter size is required for use with the DCR-FE181PRO + Lumix DMC-FZ50/FZ30 camera.
Magnification: Nominal 0.24x
Actual 180-degree/Diagonal
Lens construction: 4G/5E Optical coated glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g(24oz)

RA6258, RA6255, RA6252 and RA6243 adapter rings are Included.

Specifications



Click camera for actual comparison images.



Click camera for actual comparison images.
DCR-150 Macro/Close-Up lens
You can simply "Snap On" DCR-150 Macro lens onto the filter threads of Lumix DMC-FZ50/FZ30 camera.(Shooting distance from the object ; 180mm in maximum telephoto macro mode.)

Magnification: 4.4x, compared to camera's max.wideangle macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-150 53x18mm/50g.
CAMERA STAND KS-2000 FOR MACRO IMAGING


Specifications
DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto the filter threads of Lumix DMC-FZ50/FZ30 camera.(Shooting distance from the object ;111mm in maximum telephoto macro mode.)

Magnification: 6.4x, compared to camera's max.wideangle macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-250 53x18mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING


Specifications




Click camera for actual comparison images.



Click camera for actual comparison images.
MSN-202 Super Macro/Close-Up lens
You can simply "Snap On" MSN-202 Super Macro lens onto the lens filter threads.(52-67mm) by using a universal mount UAC3500 and it will be able to take macro images with minimum distortion at the maximum telephoto position of Lumix DMC-FZ50/FZ30 camera.
(Shooting distance from the object ;30mm in maximum telephoto mode.)
Magnification: 20x, compared to camera's max.wideangle macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-200 42x22mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING

UAC3500 Universal adapter is Included in MSN-202.
UAC3500 Universal adapter is NOT included in MSN-200.
MSN-505 Super Macro/Close-Up lens
With MSN-505 Super Macro lens attached, the camera captures an intricate tiny object like 3mm x 2.3mm for a frame-filling enlarged close-up image from the distance of 17mm to the object at the maximum telephoto position.You can simply "Snap On" MSN-505 Super Macro lens onto the filter threads of Lumix DMC-FZ50/FZ30 camera by using a universal mount UAC3500 and it will be able to capture macro images with minimum distortion at the maximum telephoto position of Lumix DMC-FZ50/FZ30 camera.

Magnification: 27x, compared to camera's max.wideangle macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-500 42 x 24mm/86g.
CAMERA STAND KS-2000 FOR MACRO IMAGING

UAC3500 Universal adapter is Included in MSN-505.
UAC3500 Universal adapter is NOT included in MSN-500.


UAC3500 Universal Adapter for 52-67mm filter size.
You can simply "Snap On" UAC-3500 Universal Adapter on the lens filter threads of 52-67mm.
Male threads size: 52-67mm
Female threads size: 37mm
UAC3500 Universal adapter is Included in MSN-202 & MSN-505 models.

CAMERA STAND KS-2000 FOR MACRO IMAGING
A camera stand with built-in light source and height adjustable camera mount.

WMV VIDEO FILE(WMV 480KB)
(480KB)
MOV VIDEO FILE(MOV 3400KB)
(3400KB)
WMV VIDEO FILE(WMV 600KB)
(600KB)
MOV VIDEO FILE(MOV 3600KB)
(3600KB)






RA6255 adapter ring

This is an adapter ring required for mounting DCR-2025PRO, DCR-CF185PRO, DCR-FE180PRO
onto LUMIX DMC-FZ50/FZ30 camera.

F62-M55mm size adapter ring

RA5255B adapter ring

This is an adapter ring required for mounting DCR-1542PRO, DCR-5000 onto LUMIX DMC-FZ50/FZ30 camera.
RA5255 has been discontinued its production in May 2006 and the newer model RA5255B replaced RA5255.

F52-M55mm size adapter ring
The DCR-CF187PRO/DCR-FE181PRO lenses weigh 560g (1.24lbs)/685g (1.5 lbs)and they are rather heavy stuff and may limit the way of shooting condition.Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of  camera's zoom lens.
Raynox wideangle conversion lenses were designed to use at maximum wideangle position of  camera's zoom lens unless specified.
All of Raynox conversion lenses are proudly made in Japan. At our wholly owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
72mm size filter may cause "vignetting" (darkening corners of its taken image) when used on the HD-6600PRO-55 Wideangle conversion lens.
The production of MSN-200 & MSN-500 have been discontinued in Nov. 2005 and they were replaced by MSN-202 & MSN-505.
Do Not use the built-in flash while conversion lens is attached.
*The cosmetic designs may change without prior Notice.
Use of adapters other than Raynox made may result poor resolution at the corners of the image.
