DCR-5320PRO 3-in-1High Definition
Triple Macro Conversion Lens
The DCR-5320PRO Macro Close-up lens is made of two independent lenses of
2-diopter magnification and 3-diopter one, both fabricated in doublet formula
for less color aberration at corners. By putting the two lenses together,
it creates the high 5-diopter magnification macro close-up conversion lens
with the excellent high resolution power of 200 lines/mm at center (MTF30%).
The Model RA7262 adapter ring and RT6265T/W lens holder adapter are required
for use with the DCR-5320PRO on the CoolPix8800 camera
RA7262 adapter ring is Not Included.
RT6265 adapter ring is Not Included.
Specifications
|
 |
|
|
Click camera for actual comparison images. |
 |
Click camera for actual comparison images. |
DCR-CF187PRO High Definition 185º Circular Fish-Eye Conversion Lens
Upon mounting on the zoom lens, The DCR-CF187PRO opens the field of view
to the circular fisheye image. It's a completely new high definition lens
made of the high index optical coated lens with a 4-group/6-element formula
to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.
The Model RT6265T/W Raynox lens holder is required for use with the DCR-CF187PRO
on the CoolPix8800 camera
Magnification: Nominal 185-degree, Actual 185-degree/Diagonal, 185-degree/Horizontal
Lens construction: 4G/6E, made of optical glass lenses, all surfaces fully
coated.
Mounting threads: 62mm
Size / Weight: 96 x 98 / 560g(24oz)
RA6243, RA6252, RA6255 and RA6258 adapter rings are Included.
RT6265T/W is Not included.
Specifications
 |
DCR-2025PRO 2.2x High Definition
Telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of Nikon CoolPix8800 zoom lens
to 770mm super telephoto ! (35mm film equivalent) It's a completely new
high definition lens made of the high index optical lens with a 2-group/4-element
formula.
260 lines/mm resolution power at center (MTF30%)
The Model RT6265T/W Raynox lens holder is required for use with the DCR-2025PRO
on the CoolPix8800 camera.
Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 5m
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 85mm/275g.(9.7oz)
DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.
RT6265T/W is Not included.
Specifications
 |
HOW TO MOUNT THE DCR TELEPHOTO OR MACRO LENS
1) Set the camera power "OFF"@and remove the lens cap first, then remove the lens ring from the camera. ( Image@ )
2) Screw in RT6265T/W onto the CoolPix8800 camera then mount the Telephoto
or Macro lenses. ( ImageA )
HOW TO MOUNT THE DCR FISHEYE LENS
1) Set the camera power "OFF"@and remove the lens cap first, then remove the lens ring from the camera. ( Image@ )
2) Set the camera power "ON" and confirm the master lens is set
for maximum wideangle position then set the camera power "OFF".
3) Screw in RT6265T/W onto the CoolPix8800 camera then take the front part of the RT6265T/W ( ImageA,B )
4) Mount the DCR Fisheye lenses onto the RT6265T/W(Rear part) adapter.
|
|
|
|
Click camera for actual comparison images. |
|
Click camera for actual comparison images. |

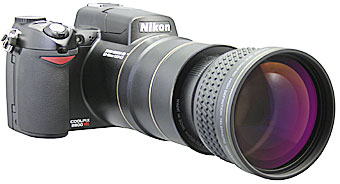

DCR-1542PRO 1.54x
High Definition telephoto Conversion Lens
DCR-1542PRO lens extends the focal length of CoolPix8800 camera zoom lens
to 540mm telephoto lens! (35mm film equivalent) It's a completely new high
definition lens made of the high index optical lens with a 2-group/4-element
formula.
340 lines/mm resolution power at center (MTF30%)
The Model RA5262A Raynox adapter ring(sold separately) and Raynox RT6265T/W
lens holder (sold separately) are required for use with the DCR-1542PRO
on the CoolPix8800 camera
Magnification: Nominal 1.54x
Actual 1.54x / Diagonal, 1.54x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
RA5262A adapter ring is Not Included.
RT6265T/W is Not included.
Specifications
|

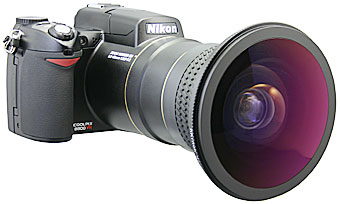

DCR-FE181PRO Fish-Eye(Full Frame) Lens
DCR-FE181PRO lens captures an amazing ultra-wideangle view of 180 degrees on@diagonal line at the wideangle position. Zooming may be limited to 1.1x zooming when attached to the CoolPix8800 digital camera. It's a completely new high definition lens made of the high index optical lens with a 4-group/5-element formula.
480 lines/mm resolution power at center (MTF30%)
The Model RT6265T/W Raynox lens holder is required for use with the DCR-FE181PRO
on the CoolPix8800 camera(See below animation for mounting the lens onto the camera.)
Magnification: Nominal 0.24x
Actual 180-degree/Diagonal
Lens construction: 4G/5E Optical coated glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g
RA6243, RA6252, RA6255 and RA6258 adapter rings are Included.
RT6265T/W is Not included.
Specifications
|
HOW TO MOUNT THE DCR TELEPHOTO OR MACRO LENS
1) Set the camera power "OFF"@and remove the lens cap first,
then remove the lens ring from the camera. ( Image@ )
2) Screw in RT6265T/W onto the CoolPix8800 camera then mount the Telephoto
or Macro lenses. ( ImageA )
HOW TO MOUNT THE DCR FISHEYE LENS
1) Set the camera power "OFF"@and remove the lens cap first, then remove the lens ring from the camera. ( Image@ )
2) Set the camera power "ON" and confirm the master lens is set
for maximum wideangle position then set the camera power "OFF".
3) Screw in RT6265T/W onto the CoolPix8800 camera then take the front part of the RT6265T/W ( ImageA,B )
4) Mount the DCR Fisheye lenses onto the RT6265T/W(Rear part) adapter.
|
|
|
|
|
|
|
Click camera for actual comparison images. |
|
Click camera for actual comparison images. |

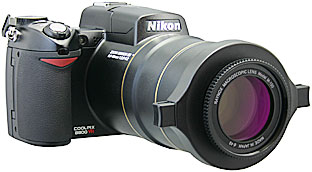

DCR-150 Macro/Close-Up lens
You can simply "Snap On" DCR-150 Macro lens onto the RT6265T/W
lens holder.(Shooting distance from the object ; 163mm in maximum telephoto
mode.)
Magnification: 2.7x compare to camera's maximum macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-150 53x18mm/50g.
RT6265T/W is Not included.
Specifications
|
DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto the RT6265T/W
lens holder.(Shooting distance from the object ;106mm in maximum telephoto
mode.)
Magnification: 4.4x compare to camera's maximum macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-250 53x18mm/60g.
RT6265T/W is Not included.
Specifications
|
|
|
|
Click camera for actual comparison images. |
|
 |

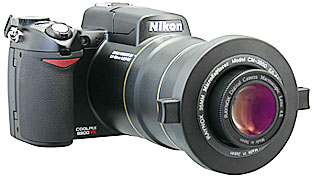

MSN-202 Super Macro/Close-Up lens
You can simply "Snap On" MSN-202 Super Macro lens onto the lens filter threads.(52-67mm) by using a universal mount UAC3500 and it will be able to take macro images with minimum distortion at the maximum telephoto position of CoolPix8800 camera.
(Shooting distance from the object ;35mm in maximum telephoto mode.)
Magnification: 13x compare to original macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-200 42x22mm/60g.
RT6265T/W is Not included.
UAC3500 Universal adapter is included in MSN-202.
( You can also mount the lens by using two adapter rings RA5262A and RA3752
which are sold separately from us.)
|
RT6265T/W lens holder
This is a lens holder required for mounting DCR-CF185PRO, DCR-FE180PRO, DCR-2025PRO, DCR-1542PRO, DCR-150, DCR-250 and MSN-200 onto the Nikon CoolPix8800 digital camera.
Available in Feb/2005 |
HOW TO MOUNT THE DCR TELEPHOTO OR MACRO LENS
1) Set the camera power "OFF"@and remove the lens cap first, then remove the lens ring from the camera. ( Image@ )
2) Screw in RT6265T/W onto the CoolPix8800 camera then mount the Telephoto
or Macro lenses. ( ImageA )
HOW TO MOUNT THE DCR FISHEYE LENS
1) Set the camera power "OFF"@and remove the lens cap first, then remove the lens ring from the camera. ( Image@ )
2) Set the camera power "ON" and confirm the master lens is set
for maximum wideangle position then set the camera power "OFF".
3) Screw in RT6265T/W onto the CoolPix8800 camera then take the front part of the RT6265T/W ( ImageA,B )
4) Mount the DCR Fisheye lenses onto the RT6265T/W(Rear part) adapter.
|
|
|
|
 |
|
 |
UAC3500 Universal Adapter for 52-67mm filter size.
You can simply "Snap On" UAC-3500 Universal Adapter on the lens
filter threads of 52-67mm.
Male threads size: 52-67mm
Female threads size: 37mm
UAC3500 Universal adapter is included in MSN-202.
|
CAMERA STAND KS-2000 FOR MACRO IMAGING
A camera stand with built-in light source and height adjustable camera
mount.
