Click camera for actual comparison images.



Click camera for actual comparison images.

DCR-730 Wideangle lens 0.7x
DCR-730 lens broadens angle of view 37% more than original camera lens. The lens is made of high index optical glass elements which obtain the maximum resolution power of 375 lines/mm at center (MTF30%),
There will be no reduction of light value when this conversion lens is attached on the camera's lens.

Magnification: Nominal 0.7x Actual 0.71x/Diagonal, 0.75x/Horizontal
Lens construction: 2G/2E Optical coated glass elements
Mounting threads: 52mm
Size/Weight:: 66 x 29mm/130g
Specifications
RT5248 lens holder is Not Included.
Specifications

DCR-CF185PRO High Definition 185º Circular Fish-Eye Conversion Lens
Upon mounting on the zoom lens, The DCR-CF185PRO opens the field of view to the ultra wide angle, the diagonal fisheye angle and to the circular fisheye images. It's a completely new high definition lens made of the high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.

Model RT5248 Lens Holder Tube and RA6252 adapter ring are required for use with the DCR-CF185PRO.
Magnification: Nominal 185-degree, Actual 185-degree/Diagonal, 185-degree/Horizontal
Lens construction: 4G/6E, made of optical glass lenses, all surfaces fully coated.
Mounting threads: 62mm
Size / Weight: 96 x 98 / 560g(24oz)

RA6258 and RA6252 adapter rings are Included.
RT5248 lens holder is Not Included.
Specifications


Click camera for actual comparison images.



Click camera for actual comparison images.

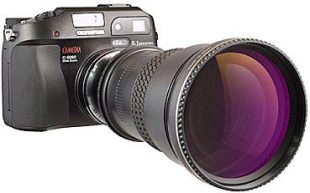

DCR-2025PRO 2.2x
Pro-Telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of C-7070, 5060 Wide Zoom camera lens to 245mm telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula. 260 lines/mm resolution power at center (MTF30%)
Model RT5248 Lens Holder Tube and RA6252 adapter ring are required for use with the DCR-2025PRO.

Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 2m
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 85mm/275g.(9.7oz)
RT5248 lens holder is Not Included.
DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.
Specifications

MDR-079PRO 0.79x
High Definition Wideangle Conversion Lens

MDR-079PRO 0.79x high definition lens is especially designed for getting low distortion(-1.9%) and high resolution(330 lines/mm resolution power at center (MTF30%)) performance. The lens converts them into the superb 21mm (35mm film equivalent) Super wide angle coverage cameras.
It stays in focus during the whole zooming when attached to the OLYMPUS C-7070, 5060WideZoom digital camera.

Model RT5248 Lens Holder Tube and RA4952 adapter ring are required for use with the MDR-079PRO.

Magnification: Nominal 0.79x Actual 0.79x / Diagonal, 0.79x / Horizontal
Lens construction: 3G/3E Optical coated glass elements
Mounting threads: 49mm
Front filter size: 82mm
Size/Weight: 86 x 29mm/195g.(6.8oz)
RA4952 adapter ring is Included.
RT5248 lens holder is Not Included.

Production Discontinued.
Available quantity may be limited. (Sep. 2007)



Click camera for actual comparison images.



Click camera for actual comparison images.
DCR-1542PRO 1.54x
High Definition Telephoto Conversion Lens

DCR-1542PRO lens extends the focal length of C-7070, 5060 Wide Zoom camera zoom lens to 170mm telephoto lens! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.
340 lines/mm resolution power at center (MTF30%)

Magnification: Nominal 1.54x
Actual 1.54x / Diagonal, 1.54x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
RT5248 lens holder is Not Included.
Specifications

DCR-FE181PRO Fish-Eye(Full Frame) Lens
DCR-FE181PRO lens captures an amazing ultra-wideangle view of 180 degrees on both diagonal and horizontal line at the maximum wideangle position. It stays in focus during the 4x zooming when attached to the C-7070, 5060 Wide Zoom digital camera. It's a completely new high definition lens made of the high index optical lens with a 4-group/5-element formula.
It is recommended to use IE6252 adapter ring (Sold separately from us) instead of RA6252 for better resolution image when used with this camera.
Magnification: Nominal 0.24x
Actual 180-degree/Diagonal, 180-degree/Horizontal
Lens construction: 4G/5E Optical coated glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g
RA6243, RA6255, RA6258,RA6252 lens holders are included with the DCR-FE181PRO.
RT5248 lens holder is Not Included.
Specifications
Video Clip
WMV VIDEO FILE(WMV 700KB)(700KB)
MOV VIDEO FILE(MOV 3800KB)(3800KB)


To comparison images

Click camera for actual comparison images.




Click camera for actual comparison images.
DCR-1850PRO Pro-Telephoto Lens 1.85x
The DCR-1850PRO converts the C-7070, 5060 Wide Zoom lens to 200mm (35mm film equiv.) focal length when attached at the maximum telephoto position.The Performance of the DCR-1850PRO may suffer when used with C7070, 5060 Wide Zoom camera especially reduce its resolution power at corners of the image.

Magnification: Nominal1.85x
Actual1.85x/Diagonal, 1.85x/Horizontal
Lens construction: 3G/3E Optical coated glass elements Mounting threads : 52mm
Front filter size: None
Size/Weight: 85 x 58mm/265g
RT5248 lens holder is Not Included.
Specifications
DCR-1850PRO(BL) Black model 1.85x
The DCR-1850PRO converts the C-7070, 5060 Wide Zoom lens to 200mm (35mm film equiv.) focal length when attached at the maximum telephoto position.The Performance of the DCR-1850PRO may suffer when used with C7070, 5060 Wide Zoom camera especially reduce its resolution power at corners of the image.

Magnification: Nominal1.85x
Actual1.85x/Diagonal, 1.85x/Horizontal
Lens construction: 3G/3E Optical coated glass elements Mounting threads : 52mm
Front filter size: None
Size/Weight: 85 x 58mm/265g
RT5248 lens holder is Not Included.
Specifications




Click camera for actual comparison images.




Click camera for actual comparison images.
DCR-150 Macro/Close-Up lens
You can simply "Snap On" DCR-150 Macro lens onto the RT5248 lens holder.(Shooting distance from the object ; 90mm in maximum telephoto mode.)

Magnification: 0.7x compare to camera's maximum macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-150 53x18mm/50g.

RT5248 lens holder is Not Included.
Specifications
DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto the RT5248 lens holder.(Shooting distance from the object ;70mm in maximum telephoto mode.)

Magnification: 0.9x compare to camera's maximum macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-250 53x18mm/60g.

RT5248 lens holder is Not Included.
Specifications




Click camera for actual comparison images.




Click lens for actual comparison images.
MSN-202 Super Macro/Close-Up lens
You can simply "Snap On" MSN-202 Super Macro lens onto the RT5248 lens holder by using a universal mount UAC3500 and it will be able to take macro images with minimum distortion at the maximum telephoto position of C-7070, 5060 Wide Zoom camera.
(Shooting distance from the object ;35mm in maximum telephoto mode.)
Magnification: 2x compare to original macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-200 42x22mm/60g.

UAC3500 Universal adapter is NOT included.
RT5248 lens holder is Not Included.
( You can also mount the lens by using a lens holder RT5248 and RA3752 adapter ring which are sold separately from us.)
MSN-505 Super Micro/Close-up Lens
With MSN-505 Super Macro lens attached, the camera captures an intricate tiny object like 9mm x 7mm for a frame-filling enlarged close-up image from the distance of 25mm to the object.

Magnification: 3x compare to camera's maximum macro image size.
Lens construction: 3G/4E Optical coated glass elements Mounting threads : 37mm
Front filter size: None
Size/Weight: 42 x 25mm/86g

UAC3500 Universal adapter is NOT included.
RT5248 lens holder is Not Included.
( You can also mount the lens by using a lens holder RT5248 and RA3752 adapter ring which are sold separately from us.)




PFR-360 Protection Filter Kit
The filter is designed to protect your valuable camera lens from air pollution or scratches, and it comes with a cap. The multi-coated surfaces will help maintain the original optical performance of your camera.
(Filter Cap included.)



RT5248 lens holder is Included.


PLP-360 Polarizer and MC Protection Filter Kit
PLP-360 is the kit of Multi-Layer Coated Protection filter, a Linear Polarizer filter and a lens holder to mount on C-7070, 5060WZ Digital Camera. The package comes with a pouch, a filter cap and an instruction manuals.
Raynox Linear Polarizer Filter suppresses unwanted light reflection such as on the glass and on the water. It maintains auto focus function when the filter is attached.
(Filter Cap included.)

RT5248 lens holder is Included.



UAC3500 Universal Adapter for 52-67mm filter size.
You can simply "Snap On" UAC3500 Universal Adapter on the lens filter threads of RT5248 lens holder.
Male threads size: 52-67mm
Female threads size: 37mm
CAMERA STAND KS-2000 FOR MACRO IMAGING
A camera stand with built-in light source and height adjustable camera mount.

WMV VIDEO FILE(WMV 480KB)
(480KB)
MOV VIDEO FILE(MOV 3400KB)
(3400KB)
WMV VIDEO FILE(WMV 600KB)
(600KB)
MOV VIDEO FILE(MOV 3600KB)
(3600KB)


RT5248/RT5248B lens holder
This is an lens holder required for mounting DCR-2025PRO, DCR-CF185PRO, MDR-079PRO, DCR-1542PRO, DCR-FE180PRO, DCR-1850PRO, DCR-150, DCR-250, MSN-200 and MSN-500 onto C-7070, 5060 Wide Zoom cameras.
Set or take off the lens holder when the camera power is off.
The production discontinued and its available quantity may be limited. - Aug-2005
The DCR-CF185PRO/DCR-FE180PRO lenses weigh 560g (1.24lbs)/685g (1.5 lbs)and they are rather heavy stuff and may limit the way of shooting condition.Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
Do not use the built-in flash while conversion lens is attached.
Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of  camera's zoom lens.
Raynox wideangle conversion lenses were designed to use at maximum wideangle position of  camera's zoom lens unless specified.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is neither made for dust-free nor moisture/water-proof.
*The cosmetic designs may change without prior notice.
Use of adapters other than Raynox made may result poor resolution at the corners of the image.
