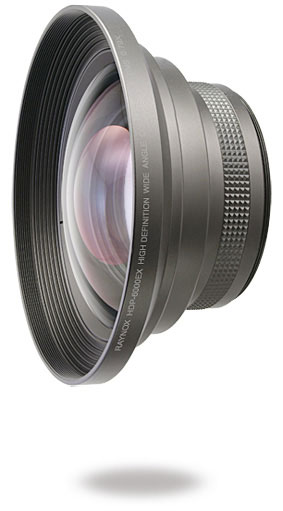

HDP-6000EX High Definition Wideangle conversion Lens 0.79x
New HDP-6000EX 0.79x high definition lens is especially designed for Professional High Definition Camcorders. It maintains sharp focusing while zooming thru the whole zoom range.
HDP-6000EX lens controls the image distortion percentage at the least, less than -2.4%. The lens has an amazing resolution power of 640 lines/mm at center (MTF 30%) to suit the high definition image quality of the camera.

With the HDP-6000EX lens attached, there will be no influence on F number of the master lens.

The lens has a mounting thread of 72mm, and with an adapter ring of 52mm, 55mm, 62mm, 67mm, 77mm or 82mm, which are sold separately, the lens can be attached on the suitable camera lens.
Production discontinued - Feb. 2013

Click lens for actual comparison images.

Selfmade Paper Lens Shade-by-Print
  Specifications & Measurements
  Construction Sturdy and solid metal body
  Magnification Nominal 0.79x
Actual 0.788x Diagonal, 0.788x Horizontal

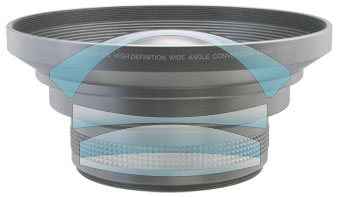

  Lens construction 3-group/4-element, Coated optical glass elements
  Image distortion -2.4%(max.wideangle)
  Front Filter thread 117mm Pitch0.75
  Mounting thread 72mm Pitch
  Dimensions 56mm x 120mm
  Weight 485g(17.1oz)
  Accessories Lens protection case, Lens caps, Instruction manuals
Go to HDR-FX7 and HVR-V1 HDV cam accessory page.
Sony HDR-FX7, FX7E, HVR-V1U, V1E, V1N
(needs RA7262 adapter)

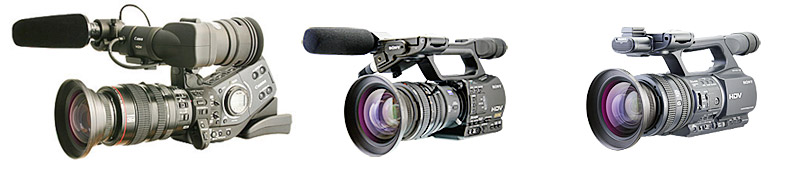

Cross reference table

Canon XL 1/XL 2, XL H1
with 20x Zoom lens
with 12x Zoom lens
SONY HDR-FX1000, FX1000E, AX2000, AX2000E, HVR-Z5E, HVR-Z5U, HXR-NX5U, NX5E HD Camcorders
These are the comparison movie taken with the HDP-6000EX and 20x High Definition Camera on or without at the same distance.
(16:9 mode)

These are the comparison movie taken with the HDP-6000EX and 12x High Definition Camera on or without at the same distance.
(16:9 mode)

These are the comparison movie taken with the HDP-6000EX and 20x High Definition Camera on or without at the same distance.
(16:9 mode)

The standard accessories come with the HDP-6000EX lens

HDP-6000EX Lens case Lens caps

RA7282 F72-M82mm Adapter ring
for 82mm filter size.(Sold separately)
RA7277 F72-M77mm Adapter ring
for 77mm filter size.(Sold separately)
RA7267 F72-M67mm Adapter ring
for 67mm filter size.(Sold separately)
RA7262 F72-M62mm Adapter ring
for 62mm filter size.(Sold separately)

RA7258 F72-M58mm Adapter ring
for 58mm filter size.(Sold separately)

RA7255 F72-M55mm Adapter ring
for 55mm filter size.(Sold separately)
RA7252 F72-M52mm Adapter ring
for 52mm filter size.(Sold separately)

The specifications and cosmetic designs may change without a notice.
HDP-6000EX lens weighs 485g and it's rather bulky, and please support the lens by hand carefully in shooting, and dismount the lens after completing the shooting.
The HDP-6000EX wide-angle lens is designed with a priority purpose of widening the field of view in maintaining the superb high image quality when used at the wide angle range of a camera's zoom lens. Though it's compatible with a 20x zoom lens, please note that the image quality may degrade at fringe when zoomed to telephoto end with some high definition camera lens.
There will be no influence on the original F number of the camera when HDP-6000EX lens is on. It remains the original F number of the camera lens.
When using with a high powered zoom lens of video camcorder, the wide angle conversion lens set at the telephoto zoom end may create some flares in a picture, depending on the shooting condition. It can be improved by closing down the aperture of the lens. It is recommended to make shooting under the bright condition when using a wide-angle lens at the telephoto zoom end.
Use of HDP-6000EX + RA7282 adapter ring may cause vignetting on Panasonic AG-HVX200 HDV Camcorder.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is neither made for dust-free nor moisture/water-proof.
