DCR-2025PRO

Click camera for actual comparison images.

DCR-2025PRO_LS082
With LS-082 Lens Shade

Raynox lens shade: model LS-082
Weight: 69g.(2.4oz)

The lens shade will cut an unwanted light beam, and it reduces flare and ghost image effect considerably.

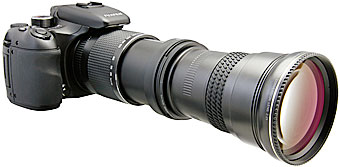

  DCR-2025PRO 2.2x High Definition telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of FUJIFILM FinePix S200EXR, S205EXR, S100FS zoom lens to 950mm(S200/205EXR), 880mm(S100FS) super telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.

260 lines/mm resolution power at center (MTF30%)

Model RA6267 Raynox adapter ring is required for use with the DCR-2025PRO + FinePix S200EXR, S205EXR, S100FS Digital Camera.

Specifications

Slight vignetting(Darkening corners) may appear and resolution power at corners may be lowered as shown on the actual taken image.
Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 12m/4.5m(Super Macro mode)
Zoom capability: 14.3x
Lens construction: 2G/4E Coated optical glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 86mm/275g.(9.7oz)
Accessories: 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes, LS-082 lens shade, Lens caps, pouch, instruction manuals.













PAGE TOP



DCR-FE180PRO

Click camera for actual comparison images.

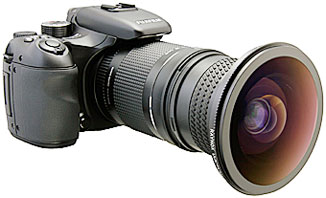

  DCR-FE181PRO High Definition
Diagonal Fisheye Conversion Lens
Shooting a creative image or making the ultra wideangle picture ? The DCR-FE181PRO lens captures an amazing wideangle view. 480 lines/mm resolution power at center (MTF30%)

Model RA6267 Raynox adapter ring is required for use with the DCR-FE181PRO + FinePix S200EXR, S205EXR, S100FS Digital Camera.

Note: The lens is designed to perform an optimum capacity when used at the zoom range from the widest angle point to 3x ratio. Beyond the 3x toward telephoto, it starts losing the image quality at corners.
Vignetting may occur in under scanning mode and still image mode in maximum wideangle zooming.

Magnification: Nominal 0.24x, Actual 180º / Diagonal, 138º / Horizontal
Minimum focusing distance: About 1cm
Zoom capability: 1-3x
Lens construction: 4G/5E Coated optical glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g.(24oz)
Accessories 2-adapter rings for 52mm(RA6252) and 58mm(RA6258) filter size, Lens caps, pouch, instruction manuals.














Specifications

PAGE TOP


DCR-CF187PRO

Click camera for actual comparison images.



  DCR-CF187PRO/DCR-CF185PRO High Definition
Circular Fisheye Conversion Lens

Upon mounting on the zoom lens, The DCR-CF187PRO/DCR-CF185PRO opens the field of view to the circular fisheye image. It's a completely new high definition lens made of the high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.

Model RA6267 Raynox adapter ring is required for use with the DCR-CF187PRO/DCR-CF185PRO + FinePix S200EXR, S205EXR, S100FS Digital Camera.

There is no difference in the quality of lens between DCR-CF187PRO and DCR-CF185PRO.
Magnification: Nominal 185º, Actual 185º / Diagonal, 185º / Horizontal
Minimum focusing distance: About 1cm
Zoom capability: 1-3x
Lens construction: 4G/6E Coated optical glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 96 x 98mm/685g.(20oz)

Accessories
DCR-CF187PRO: 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255) and 58mm(RA6258) filter size, Lens caps, pouch, instruction manuals.
DCR-CF185PRO: 2-adapter rings for 52mm(RA6252) and 58mm(RA6258) filter size, Lens caps, pouch, instruction manuals.




















Specifications

PAGE TOP





DCR-5320PRO

Click camera for actual comparison images.



How ?
Add one more DCR-5320PRO onto the same set, giving you
8 different diopter choice of 2, 3, 4, 5, 6, 7, 8 and 10.

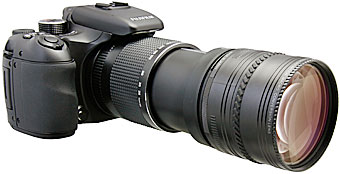

  DCR-5320PRO 3-in-1
High Definition Macro Conversion Lens

The DCR-5320PRO High Definition Macro Conversion lens is particularly designed to use with the high-end digital, film and High Definition cameras, resulting in an amazing resolution power of 200 lines/mm at center (MTF30%) with a low dispersion. With the Macro lens attached on the camera's lens, it makes possible to approach the object very close for macro shooting. The model consists of two independent lenses, one is with 2-diopter magnification and the other with 3-diopter. It also makes a 5-diopter lens by coupling the both lenses together. Taking advantage of using in three ways, you can shoot the object at the distances of either 50cm or 30cm or 17cm, depending upon the nature of a subject. All lens glass elements are fully coated for the optimum light transmittance and fine image quality.
Model RA7267 Raynox adapter ring(sold separately) for 67mm filter size is required for use with the DCR-5320PRO + FinePix S200EXR, S205EXR, S100FS Digital camera.
LENS 2-Diopter 3-Diopter 5-Diopter
Construction 1G/2E 2G/3E 3G/5E
Weight 105g(3.7oz) 290g(10.2oz) 395g(13.9oz)
Length 24mm 39mm 59mm
Filter size 72mm 72mm 72mm
Mount size 72mm 72mm 72mm
Focusing Distance 486mm* 311mm* 170mm*
Zooming capability 2x-14.3x 2x-14.3x 3x-14.3x
* Camera focus set in infinity ∞.
* Distances shown here are between top of lens to the object.
* All surfaces fully coated
Accessories included: Lens caps, Lens pouch, Instructions.
Specifications
PAGE TOP


DCR-150

Click camera for actual comparison images.

  DCR-150 Macro Conversion Lens
You can simply "Snap On" DCR-150 Macro lens onto the FinePix S200EXR, S205EXR, S100FS's 67mm filter threads directly. The shooting distance to the object is about 210mm and the picture size would be 18mm width in Tape recoding mode.

Magnification: 4.8-Diopter
Focusing distance set at infinity: 210mm
Zoom capability: 8-14.3x
Lens construction: 2G/3E Coated optical glass elements
Mounting threads: 43mm
Front filter size: 49mm
Size/Weight: 53 x 18mm/50g.(1.8oz)
UAC2000 Universal adapter, Lens case, Lens caps, Instruction manuals













Specifications


PAGE TOP


DCR-150

Click camera for actual comparison images.

  DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto the filter threads of FinePix S200EXR, S205EXR, S100FS Digital camera.(Shooting distance from the object ;109mm in maximum telephoto macro mode.)

Magnification: 8-Diopter
Focusing distance set at infinity: 109mm
Zoom capability: 9-14.3x
Lens construction: 2G/3E Coated optical glass elements
Mounting threads: 43mm
Front filter size: 49mm
Size/Weight: 53 x 18mm/60g.(2.1oz)
UAC2000 Universal adapter, Lens case, Lens caps, Instruction manuals













Specifications


.
PAGE TOP


MSN-202

Click camera for actual comparison images.

WMV FILE 8900KB
MPEG-4 8400KB
  MSN-202 Super Macro Conversion Lens
The combination of MSN-202 and FinePix S200EXR, S205EXR, S100FS display panel makes it easy to capture a tiny object from the distance of 32mm to the object at maximum telephoto position.

Magnification: 25-Diopter
Focusing distance set at infinity: 32mm
Zoom capability: 10-14.3x
Lens construction: 3G/4E Coated optical glass elements
Mounting threads: 37mm
Front filter size: None
Size/Weight: 42 x 22mm/60g.(2.1oz)
UAC3500 Universal adapter, Lens case, Lens caps, Instruction manuals


PAGE TOP

Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of  camera's zoom lens.
All of Raynox conversion lenses are proudly made in Japan. At our wholly owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
Do Not use the built-in flash while conversion lens is attached.
*The cosmetic designs may change without prior Notice.
Use of adapters other than Raynox made may result poor resolution at the corners of the image.
