There is no difference in the optical performance of lens quality between HD-2205PRO and HD-2200PRO-LE+(Plus)..


The model HD-2205PRO, HD-2200PRO-LE+(Plus) High-Definition Super Telephoto Conversion lens is made of the high index coated optical glass elements with new concept of lens designing using two-group/four-element lens formula. This new concept in designing the lens made it possible to achieve an amazing high definition Telephoto lens of the 200 lines/mm resolution power at center (MTF30%)

The HD-2205PRO, HD-2200PRO-LE+(Plus) are an ideal item for 4K, HDV, AVCHD Compact High Definition Camcorders.


High-Resolution 200-line/mm


105g Light Weight - (3.7oz)


2G/4E High Definition design


55mm Front filter threads


Lens Shade & 5-adapter ring included



Raynox lens shade: model LS-055
Weight: 37g.(1.3oz)


The lens shade will cut an unwanted light beam, and it prevents flare and ghost image effect considerably.

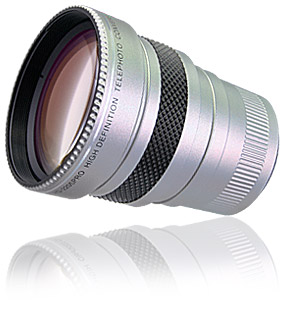

HD-2205PRO
Click the lens to comparison images.





HD-2200PRO-LE+(Plus)
Click the lens to comparison images.
(Available in limited countries)
PAGE TOP
  Specifications & Measurements
  Magnification Nominal 2.2x, Actual 2.17x Diagonal, 2.17x Horizontal
  Lens construction 2-group/4-element, Coated optical glass elements
  Front Filter thread 55mm
  Mounting thread 37mm
  Dimensions 76mm x 59mm
  Weight 105g(3.7oz)
  Accessories 5-adapter ring, Lens shade, Lens caps, Lens case, Instruction manuals



F= Female thread size, M= Male thread size, P= screw-thread pitch.

HD-2205PRO, HD-2200PRO-LE+(Plus) comes with 5-adapter rings and it is suitable to 27mm/ 30mm/ 30.5mm / 34mm/ 37mm/ 43mm filter sizes.
The adapter rings other than the above listed sizes are also available from us. (Sold separately)
VIDEO CLIP 2000KB
VIDEO CLIP 3000KB
VIDEO CLIP 2000KB
VIDEO CLIP 3000KB
Comparison movie taken with the HD-2205PRO on or without at the same distance.
(16:9 Wide mode with 20x Digital zoom)
Comparison movie taken with the HD-2205PRO + HDR HC1 HDV on or without at the same distance.
(16:9 Wide mode)
PAGE TOP

Cross reference table




WMV FILE 1900KB
(2700KB)
MPEG 1400KB
(1500KB)





WMV FILE 1900KB
(2000KB)
PAGE TOP






Click the lens to see actual comparison shots taken with DVR-2021 and HD-2205PRO.
(Please hit re-load button of your browser if you can not see the comparison image.)
PAGE TOP

HD-2205PRO, HD-2200PRO-LE+(Plus) are designed to use at maximum Telephoto position of camera's zoom lens.
Zooming towards wide angle side while the lens is attached may result in some degree of darkening at the corners of the frame(vignetting). Use at the maximum telephoto position of the zoom lens.
The remote control function may not work properly when the HD-2205PRO, HD-2200PRO-LE+(Plus) is attached. Use the LCD monitor screen for getting a precise picture framing, not through the optical view finder.
Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
The specifications and cosmetic designs may change without a notice.
Do not use the built-in flash while the HD-2205PRO, HD-2200PRO-LE+(Plus) is attached.
Screw-thread pitch size is 0.75mm unless specified.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is not compatible with SONY DCR-DVD301/201/101.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
The lens is neither made for dust-free nor moisture/water-proof.
